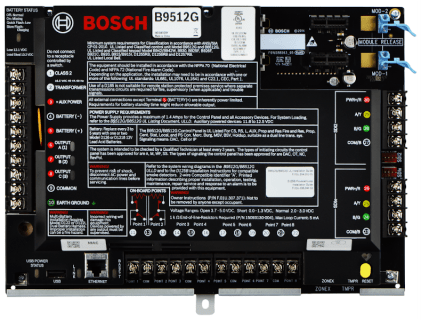

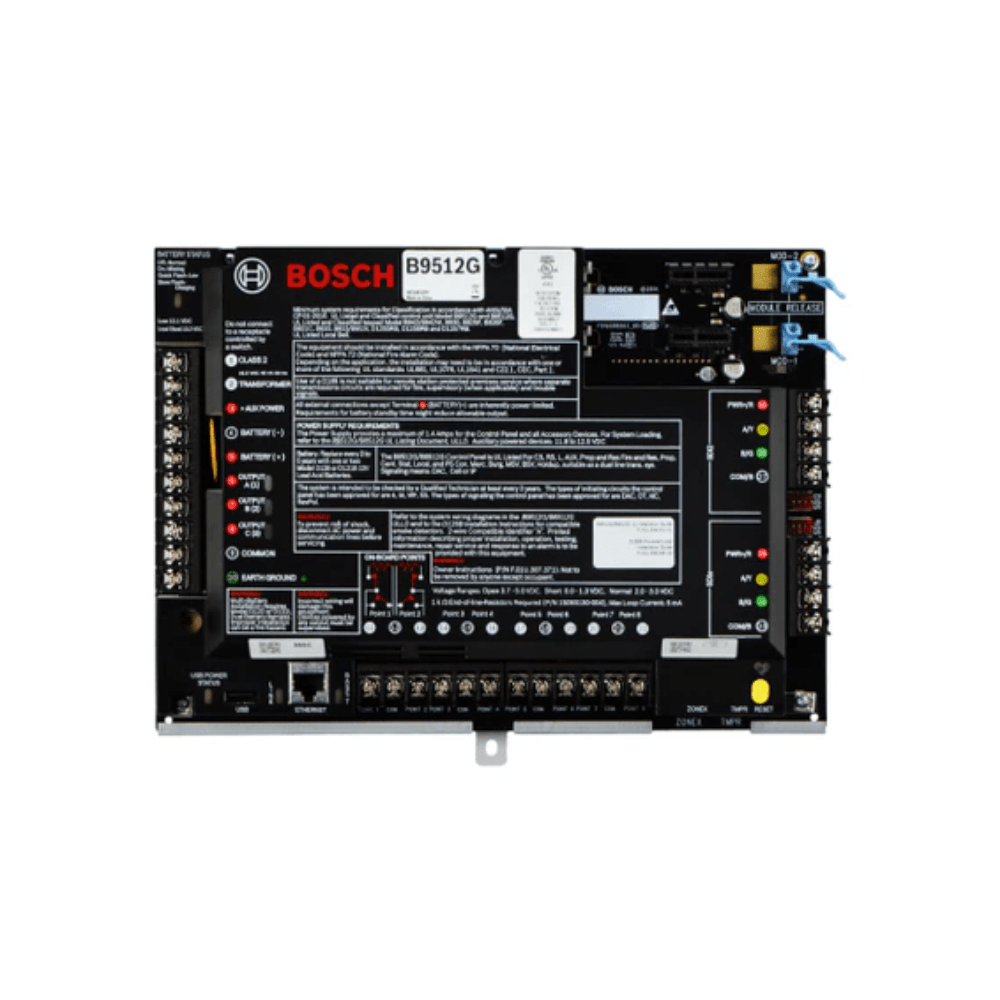

The B9512G Control Panel and the B8512G Control Panel are the new premier commercial control panels from Bosch
B9512G control panels integrate intrusion, fire, and access control providing one simple user interface for all systems.
With the ability to adapt to large and small applications, the B9512G provides up to 599 individually identified points that can be split into 32 areas.
The control panel communicates via the built-in Ethernet port or via compatible plug-in modules that can send events over the public switched telephone network (PSTN) or over cellular network communications.
For users, programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy.
With the B9512G Control Panel, you can:
- Monitor alarm points for intruder, gas, or fire alarms.
- Program all system functions locally or remotely using Remote Programming Software (RPS) or by using basic programming through the keypad.
- Add up to 32 doors of access control using the optional B901 Access Control Module.
-
The B9512G is a direct replacement for previous control panel models D9412GV4, D9412GV3, D9412GV2, and D9412G.
