BlazeMaster V5006-007 3/4 CPVC 45 Elbow

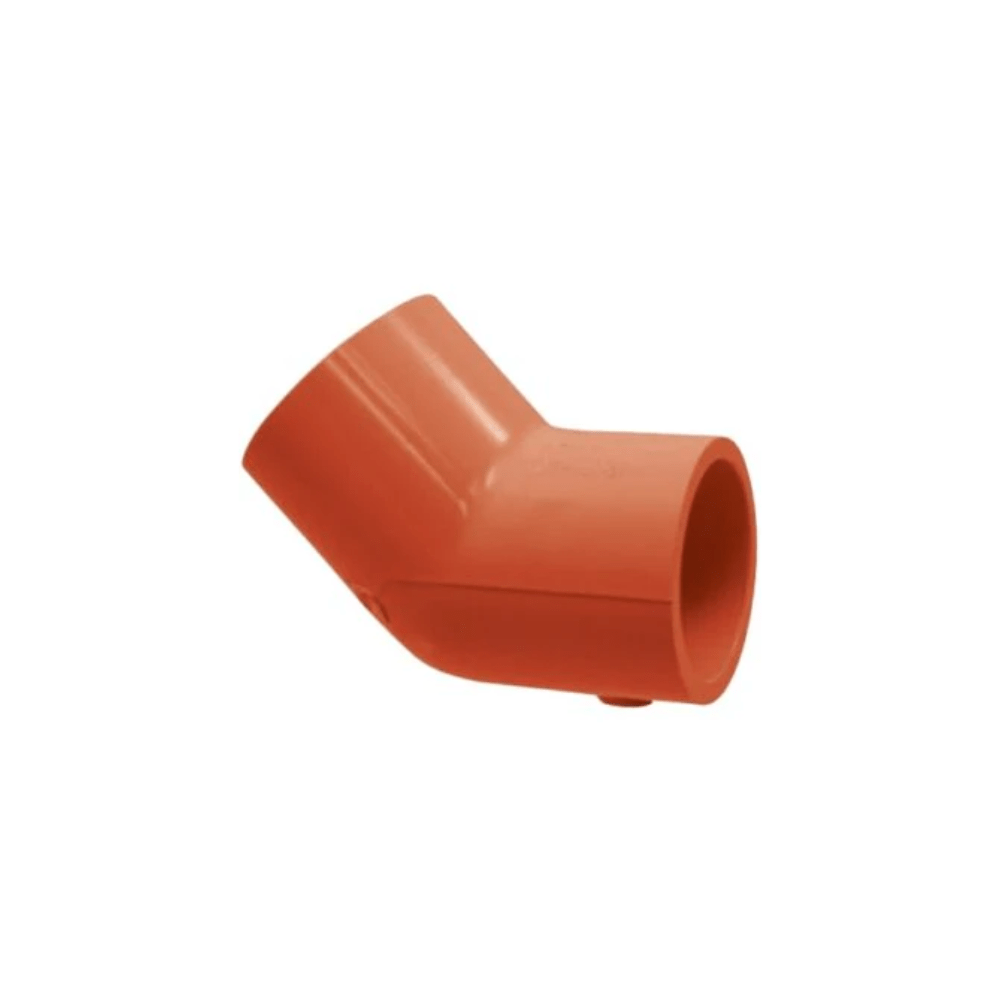

V5006-007 is a Viking Plastics BlazeMaster CPVC 45-degree elbow in 3/4 in nominal size with socket (slip) by socket ends, joined by solvent cement. It is a fire sprinkler fitting made of post-chlorinated PVC, produced in schedule 40 dimensions to ASTM F438 for this size and rated 175 psi at 150°F for sprinkler service. Viking's BlazeMaster fittings are UL listed and FM approved for CPVC fire sprinkler systems designed to NFPA 13, 13D and 13R.
Key Features
- 3/4 in CPVC 45° elbow, socket x socket (S x S)
- Viking Plastics BlazeMaster CPVC fire sprinkler fitting (figure V5006)
- Schedule 40 dimensions per ASTM F438 (3/4 in to 1-1/4 in sizes)
- Rated 175 psi at 150°F for sprinkler service
- cULus listed and FM approved; meets NFPA 13, 13D and 13R listing requirements
- NSF/ANSI 61 and NSF/ANSI 372 listed
- For use with listed CPVC fire sprinkler pipe (SDR 13.5, ASTM F442)
Specifications
| Nominal size |
3/4 in (DN 20) |
| Fitting type |
45° elbow |
| End connections |
Socket x socket (slip) |
| Material |
CPVC (BlazeMaster) |
| Dimensional standard |
Schedule 40, ASTM F438 |
| Pressure rating |
175 psi at 150°F (65°C) |
| Approvals |
cULus (UL 1821), FM (Class 1635), LPCB |
Compatible With
- BlazeMaster CPVC fire sprinkler pipe (SDR 13.5)
- Listed CPVC fittings from Tyco, IPEX and Spears (per Viking compatibility statement)
