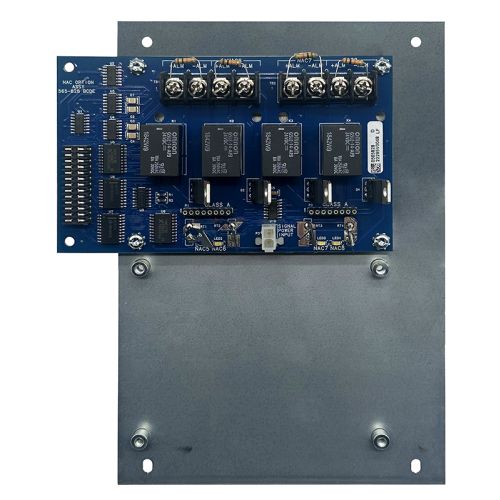

Autocall A009-9807 is the additional four-point NAC module for the Autocall 4009 IDNet NAC Extender. It is installed on site in the extender and raises it from the four standard Class B notification appliance circuits to eight. The module adds circuits only: all NACs still share the extender's single power supply rating.
Specifications
| Function |
Four additional Class B NACs |
| Rating per added NAC |
1.5 A for Special Application appliances; 1 A for Regulated 24 DC appliance power |
| Quantity per extender |
One maximum |
| Module current |
40 mA supervisory, 40 mA alarm |
| Extender total output (all NACs) |
8 A Special Application appliances; 6 A Regulated 24 DC appliance power |
| Standard extender NACs (for comparison) |
Four Class B, 2 A each |
Compatibility and installation notes
- For on-site installation in a 4009 IDNet NAC Extender (A009-9201 for 120 VAC input, A009-9301 for 240 VAC input).
- Count the module's 40 mA in the extender's supervisory and alarm current calculations, and keep total NAC load within the extender's 8 A / 6 A rating.
- Strobe synchronization of up to 33 strobes per NAC applies to extender output NACs configured for Autocall synchronized strobe operation.
- See installation instructions 574-181 and field wiring diagram 842-068 before locating the conduit entrance.
Related models
-
Autocall A009-9201 4009 IDNet NAC Extender, 120 VAC
- A009-9808 dual Class A adapter (for two NAC outputs)
- A009-9809 IDNet repeater; A009-9810 / A009-9811 fiber optic receivers, Class B / Class X
Documents
Specifications from Autocall data sheet AC4009-0002 Rev. 16, 06/2021. Manufacturer specifications are subject to change.
