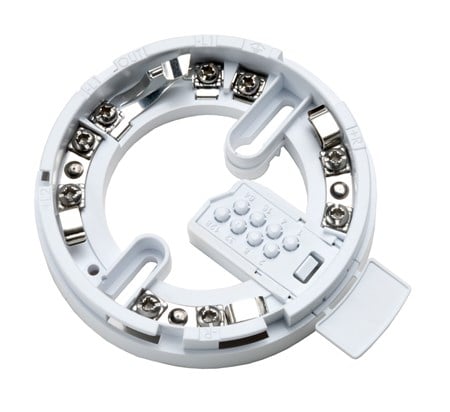

Apollo SA5000-200APO XPERT 8 Base
The XPERT 8 Base is a universal base that fits all Apollo detectors from the Soteria, Discovery and XP95 ranges.
Key Features
- Wide interior diameter for ease of access to cables and terminals
- 'E-Z Fit' allows for simple mounting of the detector base after wiring
- Isolated and non-isolated devices supported
- Isolated wiper – maintains loop connectivity during temporary removal of devices
Specifications
| Warranty |
10 year |
| Colour |
White |
| Finish |
Gloss |
| Materials housing |
Polycarbonate |
| Product depth |
20mm |
| Product diameter |
100mm |
| Terminal functions L2 |
+L2, Loop in & out positive |
| Terminal functions L1 in |
-L1 in, Loop (isolated) negative |
| Terminal functions L2 out |
-L1 out, Loop (isolated) negative |
| Terminal functions +R |
+R, Remote indicator positive connection |
| Terminal functions -R |
-R, Remote indicator negative connection |
| Polarity |
L1 &, L2 are polarity sensitive |
