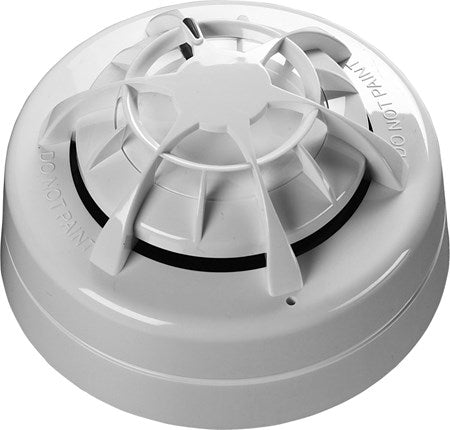

Apollo ORB-OH-13001-APO is an Orbis multi-sensor detector combining optical smoke and heat sensing.
It suits general use and responds better to fast-burning flaming fires, including liquid fires, than an optical-only detector.
Features
- Photo-electric light-scattering chamber with heat element
- Responds well to fast-burning, flaming fires
- Transient rejection algorithms to reduce false alarms
- DirtAlert drift compensation with yellow flashing LED
- FasTest test in about 4 seconds
- DustDefy system limits dust ingress
Specifications
| Holding voltage |
5 to 33 V |
| Quiescent current |
95 uA at 24 VDC |
| Operating temperature |
-40 to 158 F (-40 to 70 C) |
| Diameter |
3.82 in (97 mm) |
| Height (without base) |
1.65 in (42 mm) |
| Approvals |
VdS, SBSC, LPCB, BOSEC, CPR |
