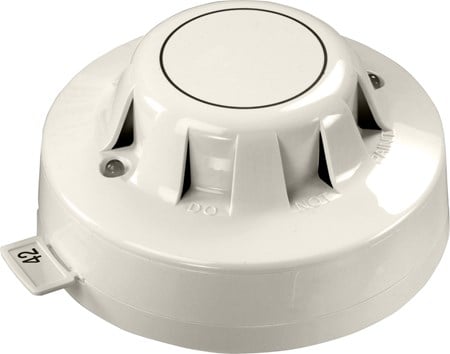

Apollo 58000-600MAR Discovery Marine Optical Smoke Detector SIL2
The Discovery Marine Optical Smoke Detector are high-specification devices using the light scatter principle to quickly detect fire while effectively managing false alarms.
Key Features
- Reliable fire detection in areas with a very wide temperature range from-40°C to +70°C
- Five operating modes suitable for a range of applications where unique response behaviour is required
- Drift compensation to ensure constant sensitivity
- Ideal for accommodation decks, passages and escape routes
- 58000-600MAR is certified to a broad range of marine approvals and is EAC approved
- 58000-600MAR has been assessed and certified for use in a safety function, to SIL level 2
Specifications
| Warranty |
10 year |
| Applications |
Bedrooms, Escape routes, Large vessels, Marine |
| Fire Type |
Slow burning, smouldering fires |
| Colour |
White |
| Sensor configuration |
Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight |
105g |
| Materials housing |
Polycarbonate |
| Materials terminals |
Nickel plated stainless steel |
| Product length |
42mm |
| Product diameter |
100mm |
| Detection principle |
Photo-electric light scattering. |
| Standards |
EN 54-7 |
| Approvals |
BV, DNV.GL, CCS, LR, ESC, MED |
| Analogue value nominal |
23 |
