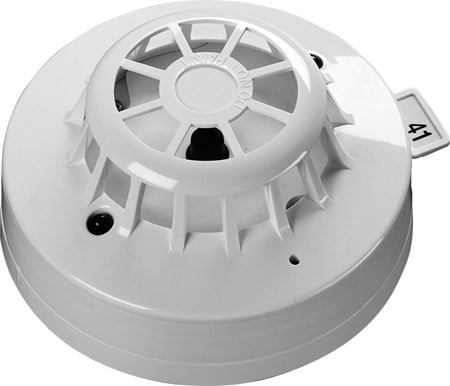

Apollo 58000-400APO Discovery Heat Detector
Key Features
- Reliable fire detection in areas with a very wide temperature range from-40°C to +70°C
- Five operating modes suitable for a range of application temperatures
- Ideal for environments that are dirty or smoky under normal circumstances
- Drift compensation to ensure constant sensitivity
- Remote test feature
Specifications
| Warranty |
10 year |
| Applications |
Car parks/loading bays, Dusty environments, Hospitals, Hotels, Medium to large buildings, Offices, University campuses, Warehouses |
| Fire Type |
Fast burning, flaming fires |
| Colour |
White |
| Sensor configuration |
Exposed heat sensing thermistor. |
| Weight |
105g |
| Materials housing |
Polycarbonate |
| Materials terminals |
Nickel plated stainless steel |
| Product length |
42mm |
| Product diameter |
100mm |
| Detection principle |
Temperature sensitive resistance. |
| Standards |
EN 54-5 |
| Approvals |
SBSC, BOSEC, FG, VdS, LPCB, CPR, MED |
| Protocol voltage (min) |
5V |
