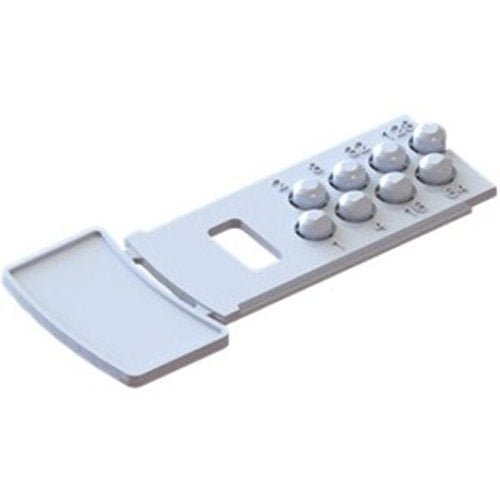

Apollo 45682-800APO is the XPERT Universal Address Card, sold in a pack of 25. One card type fits both XPERT 7 and XPERT 8 bases, so an installer only needs to carry a single address card for Apollo products. The address is set by breaking out numbered pips with a screwdriver, and the sum of the removed pips is the device address.
Specifications
| Part number |
45682-800APO |
| Quantity |
25 cards per pack |
| Compatible bases |
XPERT 7 and XPERT 8 |
| Pips |
8 (1, 2, 4, 8, 16, 32, 64, 128) |
| Pip contact diameter |
1.7 to 2 mm |
| Material |
Polycarbonate |
Features
- Allows installation in all base types
- Includes the 128th pip for CoreProtocol systems
- Extra lead-in on the address pips for higher tolerance
- Speeds up installation and commissioning
- Address stays the same no matter how often detectors are replaced
With XP95 or Discovery devices the 128 pip can be removed or left in place. Black (45682-860APO) and red (45682-861APO) cards come in packs of 10 and are separate parts.
