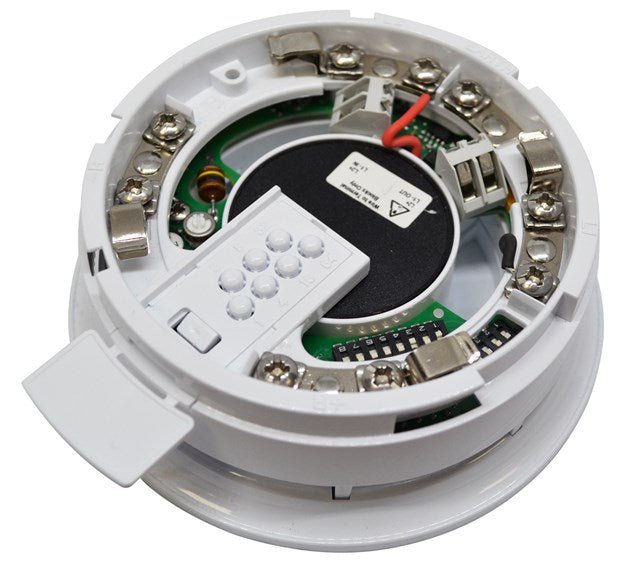

Apollo 45681-277APO is an XP95 sounder base with an integral short-circuit isolator, built into a 4-inch isolated base. It sounds two Apollo tones at a selectable volume and works on XP95, Discovery and CoreProtocol loops with XPERT 7 addressing. It is for indoor use.
Specifications
| Base size |
4 in isolated base |
| Tones |
2 Apollo tones |
| Selectable volume |
55-75 dB(A) or 75-91 dB(A) |
| Loop supply voltage |
17 to 28 V DC |
| Quiescent current |
200 µA at 24 V DC |
| Protocol voltage |
5 to 9 V peak to peak |
| Operating temperature |
-20 to 60 °C (-4 to 140 °F) |
| Humidity |
0 to 95% RH, non-condensing |
| Ingress protection |
IP21D |
| Dimensions / weight |
115 mm diameter x 38 mm; 140 g |
| Housing / color |
White polycarbonate |
| Standard |
EN 54-3 |
| Warranty |
10 years |
Features
- Integral isolator protects the loop against short circuits
- XP95 protocol, also works on Discovery and CoreProtocol loops
- XPERT 7 addressing
- L1 and L2 are polarity sensitive
Installers use it to add an addressable audible signal at the detector location without a separate sounder circuit.
