Air Products and Controls WP-2000 Weatherproof Enclosure for SL series Duct Smoke Detectors

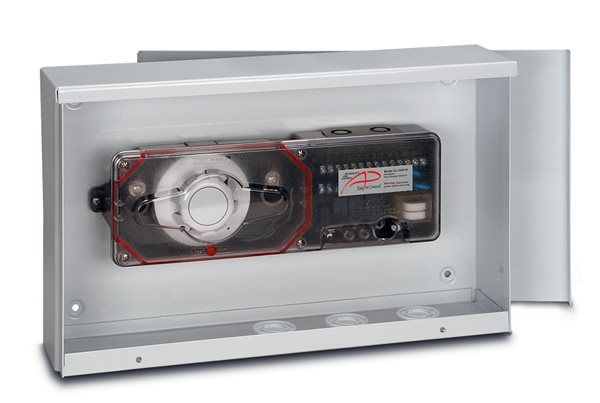

The WP Series Weatherproof Enclosures for Duct Smoke Detectors features 16 gauge steel throughout, a drip-shield top, slip-on removable cover, and embossed mounting holes on back of enclosure. There are 3 knockouts in bottom of enclosure. Detector not included. Weatherproof rating is UL 50 type 3R / NEMA type 3R. Foam gaskets for sampling/exhaust holes, and all hardware included.
Key Features
- The WP Series Weatherproof Enclosures for Duct Smoke Detectors features 16 gauge steel throughout, a drip-shield top, slip-on removable cover, and embossed mounting holes on back of enclosure.
- There are 3 knockouts in bottom of enclosure.
- SL series Detector not included.
- Weatherproof rating is UL 50 type 3R / NEMA type 3R.
- Foam gaskets for sampling/exhaust holes, and all hardware included.
Key Benefits
Designed and Manufactured in the USA.
Conformance
Standards UL 50E
Mechanical
- Weight 11lbs
- Colour White
- Materials Housing 16 Gauge Steel
- Product Height (Wo/Base) 280.924mm
- Product Width 460.502mm
- Product Depth 111.252mm
- Housing Type NEMA 3R, Outdoor
Documents
FAQ
Is a duct detector included?
No. The WP-2000 is the enclosure only; the SL Series detector is ordered separately.
What protection does it give?
UL 50 Type 3R, NEMA and CSA 3R: outdoor protection from rain, sleet and snow, or indoor protection from dripping water.
What conduit entries does it have?
Three convertible knockouts in the bottom, 0.75 in. to 1.75 in.
What hardware comes with it?
All hardware is included: foam gaskets for the sampling and exhaust holes and four #12 x 3/4 in. sheet metal screws.
