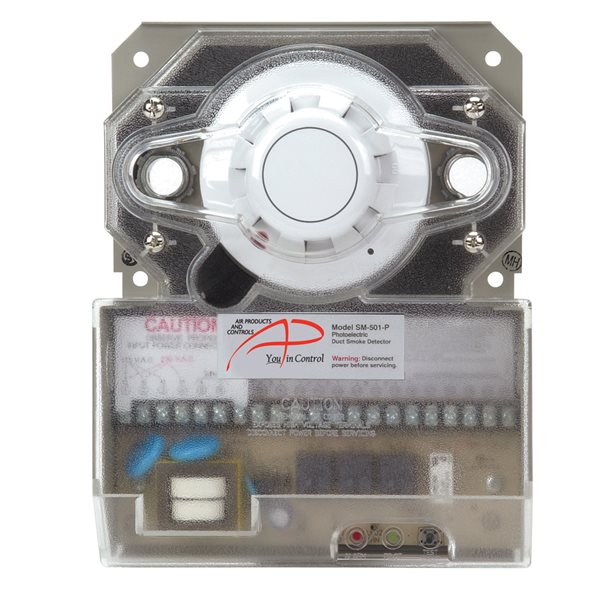

Air Products and Controls SM-501-P is a four-wire photoelectric duct smoke detector with universal voltage input. It detects smoke and the products of combustion in air moving through an HVAC duct, and it is used on supply ducts, return ducts or both.
It is a retrofit option for the discontinued RW Series and accepts plug-in photoelectric heads. Sampling tubes are ordered separately to match the width of the duct.
Features
- Operates on 230 VAC, 115 VAC, 24 VAC or 24 VDC
- Two sets of 10 A Form C alarm contacts and one set of 10 A Form C trouble contacts
- Interconnects up to 30 units for common functions
- Plug-in photoelectric head with internal dust filtering
- Steel back box with clear cover and four captive screws
- Compatible with the WP-1 weatherproof enclosure
- UL, cUL, CSFM and MEA listed
Specifications
| Air velocity range |
500 to 4,000 ft/min |
| Standby current |
15 mA at 24 VDC; 25 mA at 115 VAC |
| Alarm current |
56 mA at 24 VDC; 32 mA at 115 VAC |
| Operating temperature |
32 to 140 °F (0 to 60 °C) |
| Dimensions |
8-1/8 in. L x 7-1/4 in. W x 2-1/4 in. H |
| Sampling tubes (ordered separately) |
STS-2.5, STS-5.0, STS-10.0, or FAST tube kit up to 90 in. duct width |
