Remote w/ Key test/reset, Single Gang Cover Plate, White

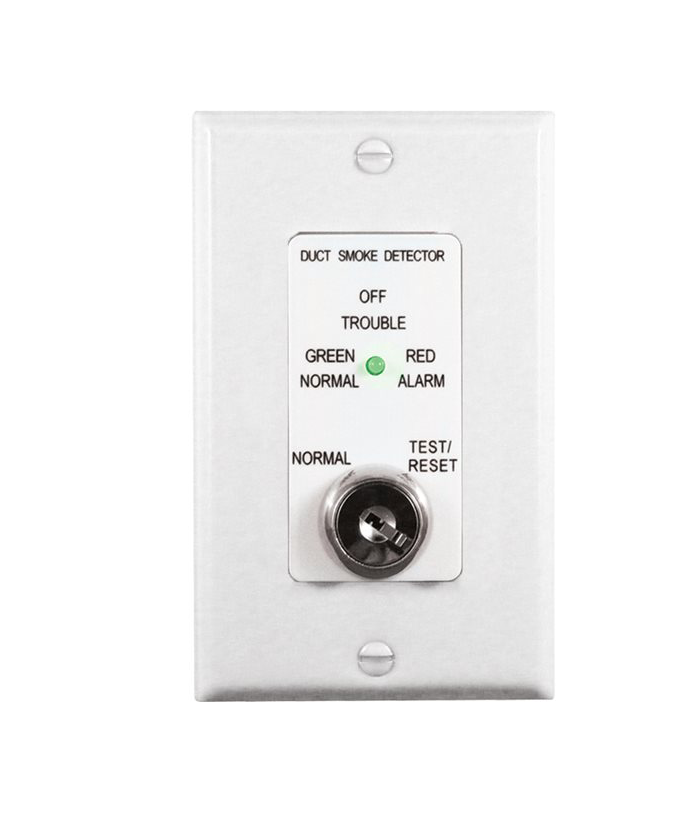

Remote test/reset station for Air Products and Controls duct smoke detectors. The MSR-50RK has a key-operated detector test and reset switch and a tri-color indicator for pilot, trouble and alarm status, on a white single-gang Decora style plate. An optional strobe or sounder/strobe assembly can be plugged into the controller.
Key Features
- Key-operated detector test and reset
- Tri-color indication of detector pilot, trouble and alarm conditions
- Lever-operated quick-connect four-position terminal block, no tools needed
- Port for plugging in the optional strobe assembly
- White single-gang Decora style cover plate
- Strobe and buzzer options are for private-mode status indication only, not ADA/evacuation notification
Specifications
| Operating element |
Key switch |
| Plate size (single gang) |
4-1/2" H x 2-3/4" W (114.3 x 69.85 mm) |
| Color |
White |
| Wiring |
14-28 AWG, solid or stranded |
| Operating temperature |
0 to 49°C |
| Weight |
0.4 lb |
| Warranty |
3 year |
| Approvals |
UL S7425 (UL268-URRQ); CSFM 7300-1004:119; MEA 73-92-E Vol. 39 |
Compatible With
- Air Products and Controls HS, SM, SL and RT Series duct smoke detectors
