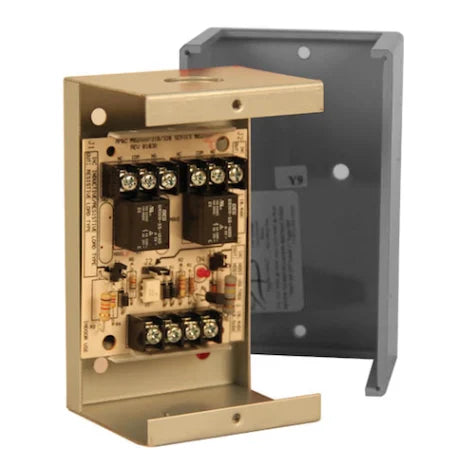

Air Products and Controls MR-201/C is a multi-voltage control relay with an energized LED, a single module position and a grey enclosure. It is part of the MR-200 series from Air Products and Controls.
Relays can be used where local contacts are needed for system status, remote contacts for controlling electrical loads, and general-purpose switching in HVAC, fire alarm, security and lighting control systems.
Features
- Can be energized from 24 V DC, 24 V AC, 115 V AC or 230 V AC by wiring to the matching input terminals; input range is 18 to 35 V DC or AC, 115 V AC or 230 V AC
- Red LED lights when the coil is energized, so no metering is needed when checking an installed system
- 40 mA coil current, per the product title
- Intended for continuous duty
- Series offers dust-proof enclosures with an LED viewing port and track mounting hardware
- UL recognized relay rated for 10,000,000 mechanical operations; UL Certified as a control unit accessory
Specifications
| Model |
MR-201/C |
| Series |
MR-200 |
| Module positions |
1 |
| Control voltages |
24 V DC, 24 V AC, 115 V AC, 230 V AC |
| Energized indicator |
Red LED |
| Coil current |
40 mA |
| Enclosure |
Grey |
