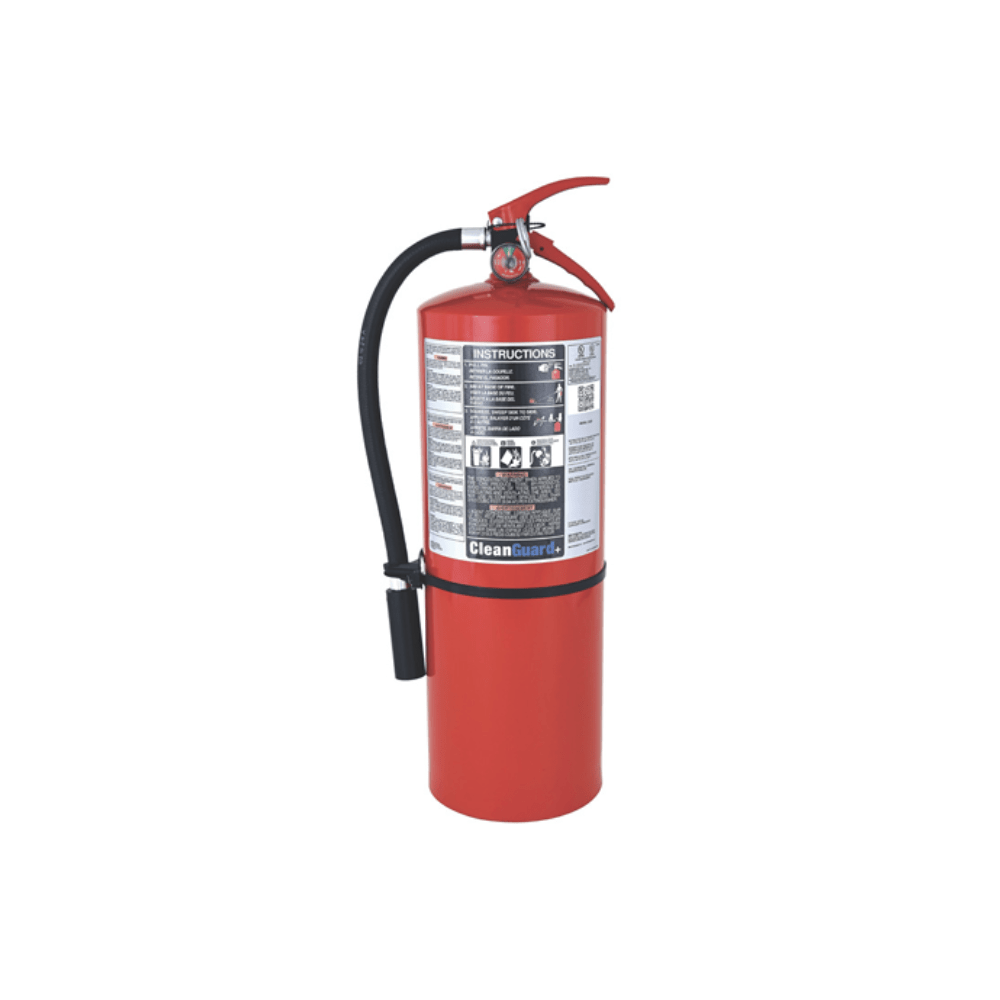

Ansul 443478 — CLEANGUARD+ model CA25 hand portable clean agent fire extinguisher charged with FK-5-1-12.
FK-5-1-12 discharges as a liquid and flashes to a gas, is electrically non-conductive and leaves no residue, so it puts out a fire in a computer room, laboratory or archive without the clean-up and thermal shock that follow dry chemical or water.
- 27.75 lb or 12.6 kg of FK-5-1-12 agent; charged weight 39.84 lb or 18.07 kg
- UL and ULC rated 2-A:10-B:C, and US Coast Guard Type B:C Size I with the approved bracket
- 18 second discharge at 1.68 lb/s, effective range 14 to 16 ft or 4.3 to 4.9 m
- 23 7/8" high × 9 3/4" wide × 7 3/8" deep, or 606 × 248 × 187 mm
- Operating range -40 to 120 °F or -40 to 49 °C; hydrostatic test once every 12 years
- Meets ANSI/UL 2129 and UL 711 and CAN/ULC S508 and S566; rechargeable
CA25 is a model designation, not an agent weight — the fill is 27.75 lb. Bracket 30937 and recharge tank 445054 are separate part numbers, and 439124 is the international number for the same extinguisher. The smaller siblings are CA13 at 443477, CA07 at 443476 and CA03VB at 443475.
Documents
FAQ
What fire classes does the CA25 cover?
The CA25 is UL and ULC rated 2-A:10-B:C. CLEANGUARD+ extinguishers are designed for light and ordinary hazards such as computer rooms, communication areas, laboratories and storage rooms for irreplaceable data, documents and art.
Is it safe for electronics?
Yes. FK-5-1-12 is electrically non-conductive and residue-free, and it does not cause thermal shock damage to delicate electronic equipment.
Is the bracket included?
The data sheet lists the CA25 bracket as a separate part number, 30937. US Coast Guard approval (Type B:C, Size I) applies when the extinguisher is used with the approved bracket.
How is it maintained?
The extinguisher is rechargeable using recharge tank 445054 with FK-5-1-12 agent, and the hydrostatic test requirement is once every 12 years.
