Ansul 442257 (AA05S-1) Extinguisher, FORAY (3-A:40-B:C)

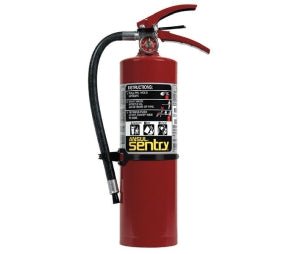

The ANSUL SENTRY AA05S-1 is a 5 lb stored-pressure dry chemical hand portable extinguisher charged with ABC agent and rated 3-A:40-B:C (UL/ULC). SENTRY dry chemical extinguishers are intended for light and ordinary hazards (Class A, B and C fires for this model) in commercial and industrial occupancies. Part No. 442257 is the domestic-packaged unit.
Key Features
- UL/ULC rating 3-A:40-B:C
- 5 lb ABC agent for Class A, B and C fires
- Meets or exceeds ANSI/UL 299 and 711 and ULC S504 and S508
- USCG approved with proper bracket
- Seamless deep-drawn steel shell with two-coat powder paint (epoxy primer, polyester top coat)
- Extruded aluminum alloy valve body with large color-coded pressure gauge
- Trilingual (English, French, Spanish) one-piece mylar nameplate
- Rechargeable; hydrostatic test every 12 years
- Six-year limited warranty
Specifications
| Model |
AA05S-1 |
| UL/ULC rating |
3-A:40-B:C |
| Agent / capacity |
5 lb ABC (FORAY, monoammonium phosphate-based) |
| Coast Guard classification |
Type A, Size II; Type B, C, Size I |
| Discharge time |
14 seconds |
| Maximum effective range |
14 ft (4.3 m) |
| Operating temperature |
-65 F to 120 F (-54 C to 49 C) |
| Agent flow rate |
0.36 lb/sec |
| Charged weight |
9 lb 1 oz (4.12 kg) |
| Height |
16-3/4 in. (425 mm) |
| Width |
8-1/2 in. (216 mm) |
| Depth |
4-7/16 in. (113 mm) |
| Fire suppression capability (UL) |
Novice 40 sq ft; experienced 100 sq ft |
| Bracket part no. |
429146 |
Compatible With
- ANSUL bracket Part No. 429146
