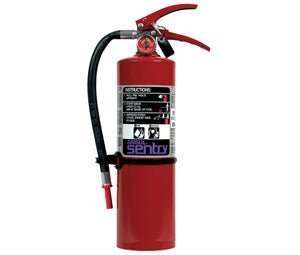

Ansul 442253 is the SENTRY model PK05S, a 5 lb stored-pressure hand portable extinguisher charged with Purple-K dry chemical and UL/ULC rated 60-B:C. Purple-K is a potassium bicarbonate-based agent that Ansul describes as its most effective dry chemical for knocking down Class B fires. It has no Class A rating, so it is chosen for flammable liquid, gas and electrical risks rather than ordinary combustibles.
Key features
- UL/ULC rating 60-B:C for flammable liquids, gases and energized electrical equipment
- Meets or exceeds ANSI/UL 299 and 711 and ULC S504 and S508
- Seamless deep-drawn steel shell with two-coat powder paint (epoxy primer, polyester top coat)
- Extruded aluminum valve body and large color-coded pressure gauge
- USCG approved with the proper bracket
- Rechargeable; hydrostatic test once every 12 years
Specifications
| Model |
PK05S |
| Agent / capacity |
5 lb (2.27 kg) Purple-K |
| UL/ULC rating |
60-B:C |
| Coast Guard classification |
Type B, C, Size I |
| Discharge time |
17 seconds |
| Maximum effective range |
16 ft (4.9 m) |
| Agent flow rate |
0.30 lb/sec (0.14 kg/sec) |
| Operating temperature |
-65 °F to 120 °F (-54 °C to 49 °C) |
| Charged weight |
9 lb 1 oz (4.12 kg) |
| Dimensions (H x W x D) |
16 3/4 x 8 1/2 x 4 7/16 in. (425 x 216 x 113 mm) |
| Bracket part no. |
429146 |
Typical applications
Fuel-handling and flammable liquid areas where a compact unit is needed, such as shop areas, auto repair shops, paint process areas, parking garages, aircraft servicing areas and material handling vehicles.
