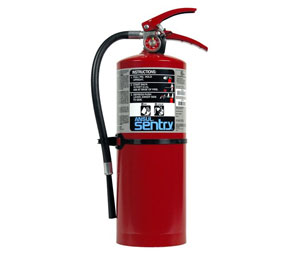

Ansul 436497 is the SENTRY model C10S, a 10 lb stored-pressure hand portable extinguisher charged with BC dry chemical, a sodium bicarbonate-based agent. It is UL/ULC rated 60-B:C for flammable liquid, gas and energized electrical fires and carries no Class A rating.
Key features
- UL/ULC rating 60-B:C (Class B and C)
- Meets or exceeds ANSI/UL 299 and 711 and ULC S504 and S508
- Seamless deep-drawn steel shell with two-coat powder paint (epoxy primer, polyester top coat)
- Extruded aluminum valve body and large color-coded pressure gauge
- USCG approved with the proper bracket
- Rechargeable; hydrostatic test once every 12 years
Specifications
| Model |
C10S |
| Agent / capacity |
10 lb (4.54 kg) BC, sodium bicarbonate-based |
| UL/ULC rating |
60-B:C |
| Coast Guard classification |
Type B, C, Size II |
| Discharge time |
19 seconds |
| Maximum effective range |
16 ft (4.9 m) |
| Agent flow rate |
0.59 lb/sec (0.27 kg/sec) |
| Operating temperature |
-65 °F to 120 °F (-54 °C to 49 °C) |
| Charged weight |
17 lb 14 oz (8.13 kg) |
| Dimensions (H x W x D) |
20 1/2 x 8 1/4 x 5 1/4 in. (521 x 210 x 133 mm) |
| Bracket part no. |
435793 |
Typical applications
Class B and C hazards in commercial and industrial sites, such as shop areas, auto repair shops, paint process areas, parking garages and material handling vehicles. Where ordinary combustibles are also present, the ABC model AA10S (436500, 4-A:80-B:C) in the same shell is the alternative.
