Ansul 434747 (AA20-1) Fire Extinguisher, FORAY, (10-A:120-B) UN1044 2.2

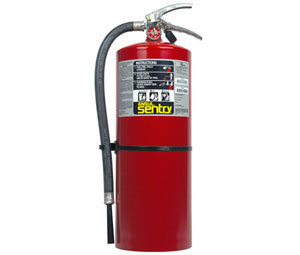

The ANSUL SENTRY AA20-1 is a 20 lb stored-pressure dry chemical hand portable extinguisher charged with ABC agent and rated 10-A:120-B:C (UL/ULC). SENTRY dry chemical extinguishers are intended for light and ordinary hazards (Class A, B and C fires for this model) in commercial and industrial occupancies. Part No. 434747 is the domestic-packaged unit.
Key Features
- UL/ULC rating 10-A:120-B:C
- 20 lb ABC agent for Class A, B and C fires
- Meets or exceeds ANSI/UL 299 and 711 and ULC S504 and S508
- USCG approved with proper bracket
- Seamless deep-drawn steel shell with two-coat powder paint (epoxy primer, polyester top coat)
- Extruded aluminum alloy valve body with large color-coded pressure gauge
- Trilingual (English, French, Spanish) one-piece mylar nameplate
- Rechargeable; hydrostatic test every 12 years
- Six-year limited warranty
Specifications
| Model |
AA20-1 |
| UL/ULC rating |
10-A:120-B:C |
| Agent / capacity |
20 lb ABC (FORAY, monoammonium phosphate-based) |
| Coast Guard classification |
Type A, Size II; Type B, C, Size III |
| Discharge time |
28 seconds |
| Maximum effective range |
22 ft (6.7 m) |
| Operating temperature |
-40 F to 120 F (-40 C to 49 C) |
| Agent flow rate |
0.73 lb/sec |
| Charged weight |
32 lb 2 oz (14.60 kg) |
| Height |
22-1/2 in. (571 mm) |
| Width |
9-1/2 in. (241 mm) |
| Depth |
7-7/32 in. (183 mm) |
| Fire suppression capability (UL) |
Novice 120 sq ft; experienced 300 sq ft |
| Bracket part no. |
30937 |
Compatible With
- ANSUL bracket Part No. 30937
