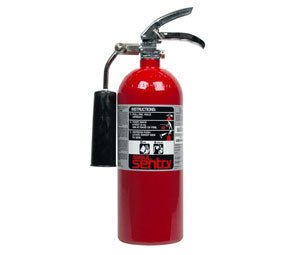

Ansul 431553 Sentry® (CD05A-1) Carbon Dioxide Hand Portable Fire Extinguisher - 5B:C, 5 lb
The ANSUL SENTRY CD05A-1 is a 5 lb carbon dioxide hand portable extinguisher with an aluminum shell, rated 5-B:C (UL/ULC). SENTRY CO2 extinguishers are intended for Class B (flammable liquid and gas) and Class C (energized electrical) hazards, typically indoors where a clean agent is wanted, such as laboratories and electronic equipment areas.
Key Features
- UL/ULC rating 5-B:C
- 5 lb carbon dioxide charge
- Clean, non-corrosive, non-conductive agent that leaves no residue
- Lightweight aluminum shell; UL and ULC Listed
- Trilingual (English, French, Spanish) one-piece mylar nameplate
- Ring pin with visual tamper seal
- Operating temperature range -22 F to 120 F (-30 C to 49 C)
- Hydrostatic test every 5 years
- Six-year limited warranty
Specifications
| Model |
CD05A-1 (aluminum) |
| UL/ULC rating |
5-B:C |
| Agent capacity |
5 lb CO2 |
| Coast Guard classification |
Type B:C, Size I |
| Maximum effective range |
6 ft (1.8 m) |
| Charged weight (without horn/hose) |
13-1/2 lb (6.1 kg) |
| Discharge time |
10 seconds |
| Height (without horn/hose) |
19 in. (483 mm) |
| Width |
7-1/4 in. (184 mm) |
| Depth |
5-11/32 in. (136 mm) |
| Discharge |
Discharge tube with horn |
| Shell outside diameter |
5-1/4 in. (133 mm) |
| Service pressure |
1800 psi (124 bar) |
| Fire suppression capability (UL) |
Novice 5 sq ft; experienced 12.5 sq ft |
Compatible With
- ANSUL bracket Part No. 25419
