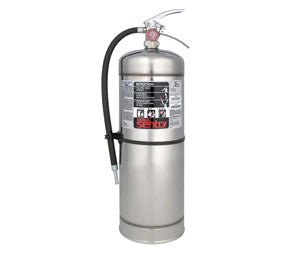

Ansul 430847 (W02-1) Water Unit, UL & ULC Extinguisher, Sentry® Water Fire Extinguisher - 2A, 2.5 Gal
The ANSUL SENTRY W02-1 is a 2.5 gallon stored-pressure water extinguisher with a stainless steel shell and valve, rated 2-A (UL/ULC). It is intended for Class A hazards such as offices, industrial locations, warehouses and oxidizing chemical storage areas. A Schrader valve allows it to be re-pressurized in the field after refilling with clean water.
Key Features
- UL/ULC rating 2-A
- 2.5 gal (9.5 L) water capacity
- Stainless steel shell and stainless steel valve
- Waterproof stainless steel gauge
- Squeeze grip with positive on-off operation
- Schrader valve for pressurization
- Trilingual (English, French, Spanish) nameplate
- USCG approved with proper bracket
Specifications
| Model |
W02-1 |
| UL/ULC rating |
2-A |
| Capacity |
2.5 gal (9.5 L) |
| Height |
25-1/2 in. (648 mm) |
| Width |
9 in. (229 mm) |
| Depth |
7 in. (178 mm) |
| Range |
35 ft (10.7 m) |
| Discharge time |
Approximately 50 seconds |
| Operating temperature |
+40 F to 120 F (4.5 C to 48.9 C) |
| Approximate shipping weight |
9.0 lb (4.1 kg) |
| Bracket |
Wall mount Part No. 450419, or bracket Part No. 30937 (USCG approved) |
Compatible With
- ANSUL wall mount Part No. 450419
- ANSUL bracket Part No. 30937
