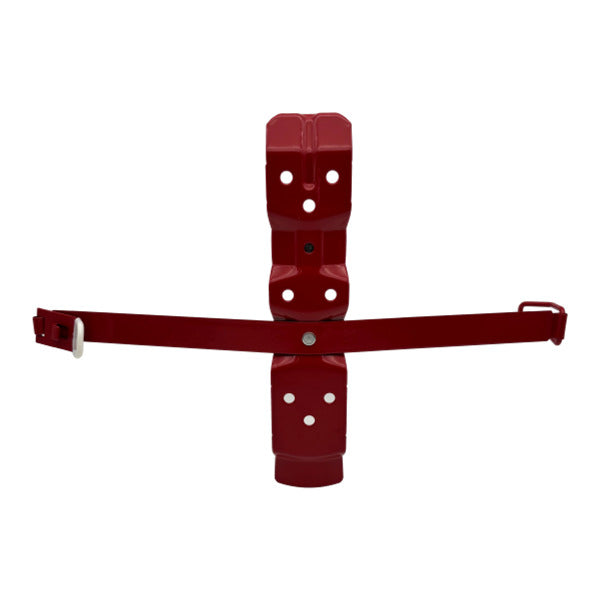

Amerex 06570-P001 — red Model 818 bracket for 5 lb. fire extinguishers.
Amerex files the 818 under Vehicle/Marine/Aviation brackets rather than wall hangers: a strap type mobile mount meant to hold a cylinder against the vibration of a truck, boat or aircraft. The stock number 06570-P001 is the order code; 818 is the model designation Amerex prints in its bracket reference.
- Amerex Model 818, red, single strap; stock number 06570-P001
- Sized for 5 lb. Amerex extinguishers of 4.25 in. cylinder diameter
- Listed in the USCG bracket column for B402, B402T, B500, B500T, B479, B479T, B386T and B355T
- Ships as the included bracket on the B386T and B355T
- Service parts: rubber pad 03412, rivet 01264, white vinyl tip 03076-P
- All Amerex brackets meet the UL salt spray requirement, 240 hours at 20% salt solution per ASTM B117
Two siblings catch people out. The 818S is the two strap version, included on the 5.5 lb. B394TS aircraft unit, and 818B is the black finish. Amerex also carries a second red Model 818 item, stock number 01211-P001, so match the number the specification calls out.
