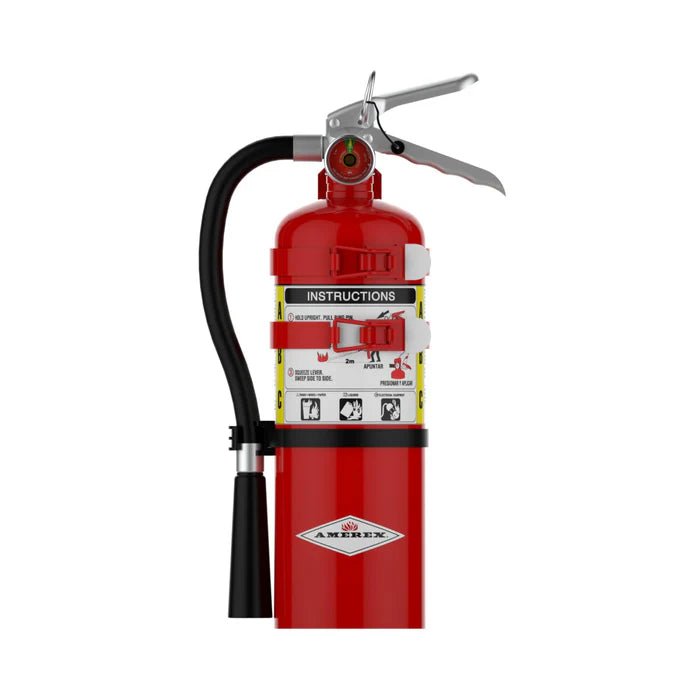

Amerex B500TS ABC Dry Chemical Fire Extinguisher 5lb, 2A10BC, With (2) Strap Vehicle Bracket (15307)
The Amerex B500 series is a 5 lb. stored-pressure ABC dry chemical extinguisher rated 2A:10B:C with an anodized aluminum valve and hose and nozzle. The B500TS version (P/N 15307) is supplied with a two-strap vehicle bracket instead of the wall hanger.
Key Features
- UL & ULC rating 2A:10B:C
- 5 lb. ABC (mono ammonium phosphate) dry chemical
- Anodized aluminum valve body, handle and lever
- Hose and nozzle design
- Stored-pressure design with drawn-steel cylinder
- Operating temperature range -65 F to 120 F
- Supplied with 2-strap vehicle bracket
- 6-year manufacturer's warranty
Specifications
| UL/ULC rating |
2A:10B:C |
| Capacity |
5 lb. |
| Height |
15.25 in. |
| Width |
7.25 in. |
| Depth |
4.25 in. |
| Cylinder diameter |
4.25 in. |
| Range (initial) |
12-18 ft. |
| Discharge time |
14 sec. |
| Nominal operating pressure |
195 psig |
Compatible With
- Amerex 818S 2-strap vehicle/marine bracket
- Amerex 818, 821, 861H, 807 brackets
- Amerex 860 rubber-strap bracket
