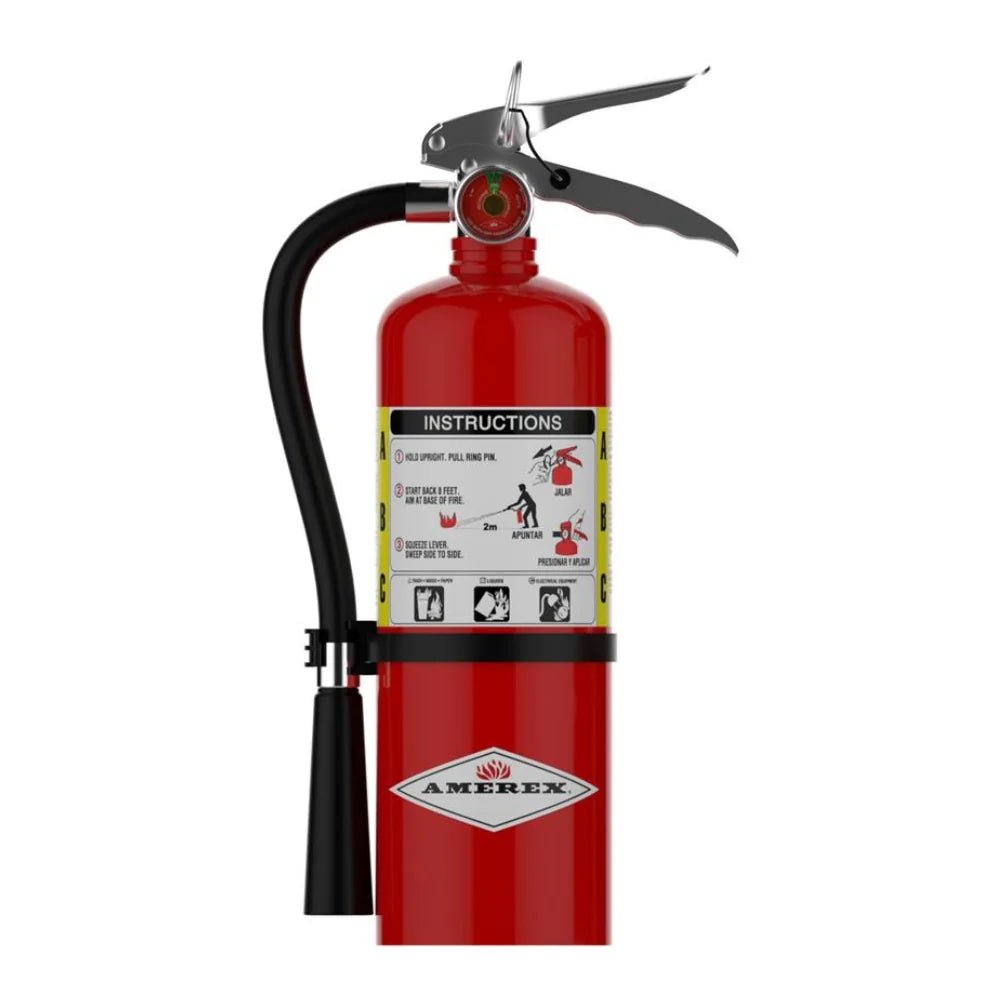

Amerex B424 5lb ABC Fire Extinguisher (15267)
The Amerex B424 is a 5 lb. stored-pressure ABC (multi-purpose) dry chemical extinguisher rated 2A:10B:C. It is the brass-valve 5 lb. model in the Amerex ABC line, with a chrome-plated brass valve body, stainless steel handle and lever, and a hose and nozzle. It comes with a wall bracket.
Key Features
- UL & ULC rating 2A:10B:C
- 5 lb. ABC (mono ammonium phosphate) dry chemical
- Heavy-duty chrome-plated brass valve body with stainless steel handle and lever
- Hose and nozzle design
- Stored-pressure design with drawn-steel cylinder and polyester powder paint
- Operating temperature range -65 F to 120 F
- Wall bracket included (Amerex 888)
- 6-year manufacturer's warranty
Specifications
| UL/ULC rating |
2A:10B:C |
| Capacity |
5 lb. |
| Shipping weight |
10.5 lb. |
| Height |
15.5 in. |
| Width |
8 in. |
| Depth |
4.25 in. |
| Range (initial) |
12-18 ft. |
| Discharge time |
14 sec. |
| Nominal operating pressure |
195 psig |
| Test standards |
CAN/ULC-S504 - UL 299; CAN/ULC-S508 - UL 711 |
Compatible With
- Amerex 888 wall bracket (included)
- Amerex 821 / 861H brackets (USCG)
- Amerex 821S, 807 brackets (optional)
- Amerex 860 rubber-strap bracket
