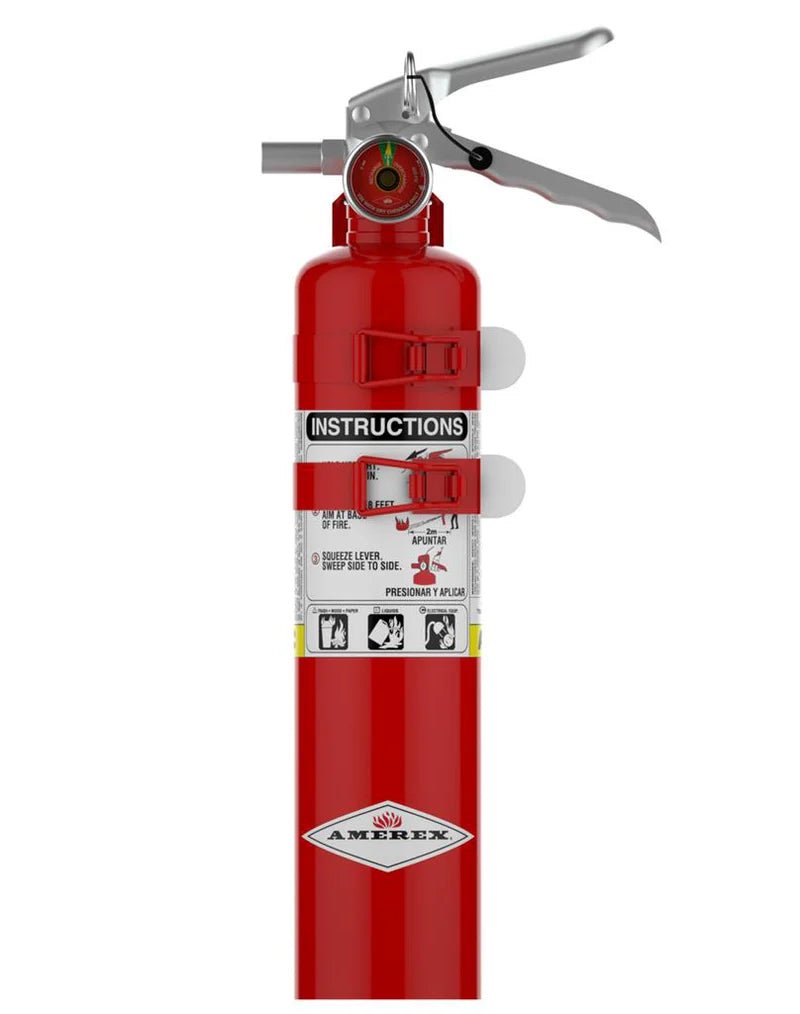

Amerex B417TS — 2.5 lb ABC dry chemical fire extinguisher supplied with a two-strap vehicle and marine bracket, Amerex item number 15230.
ABC agent is a siliconized mono ammonium phosphate powder that melts at roughly 350°F to insulate Class A material, smothers Class B fires and will not conduct electricity back to the operator. The TS build puts that cylinder in a strap bracket, which keeps it seated in a truck or on mobile equipment.
- UL and ULC rating 1A:10B:C; 2.5 lb of ABC dry chemical
- 195 PSIG nominal pressure; stored pressure, drawn steel cylinder
- Discharge time 9 seconds; initial range 9 to 15 ft
- Height 15.25", cylinder diameter 3"; 5.5 lb shipping weight with box
- Anodized aluminum valve body, handle and lever; fixed nozzle
- Amerex lists -65° to 120°F for its ABC line; six-year warranty
Amerex catalogues this extinguisher three ways and only the bracket changes: B417 with a wall bracket, B417T (item 15217) with a vehicle bracket, and B417TS with the two-strap vehicle and marine bracket Amerex lists as the 817S for 2-1/2 lb aluminum-valve models.
