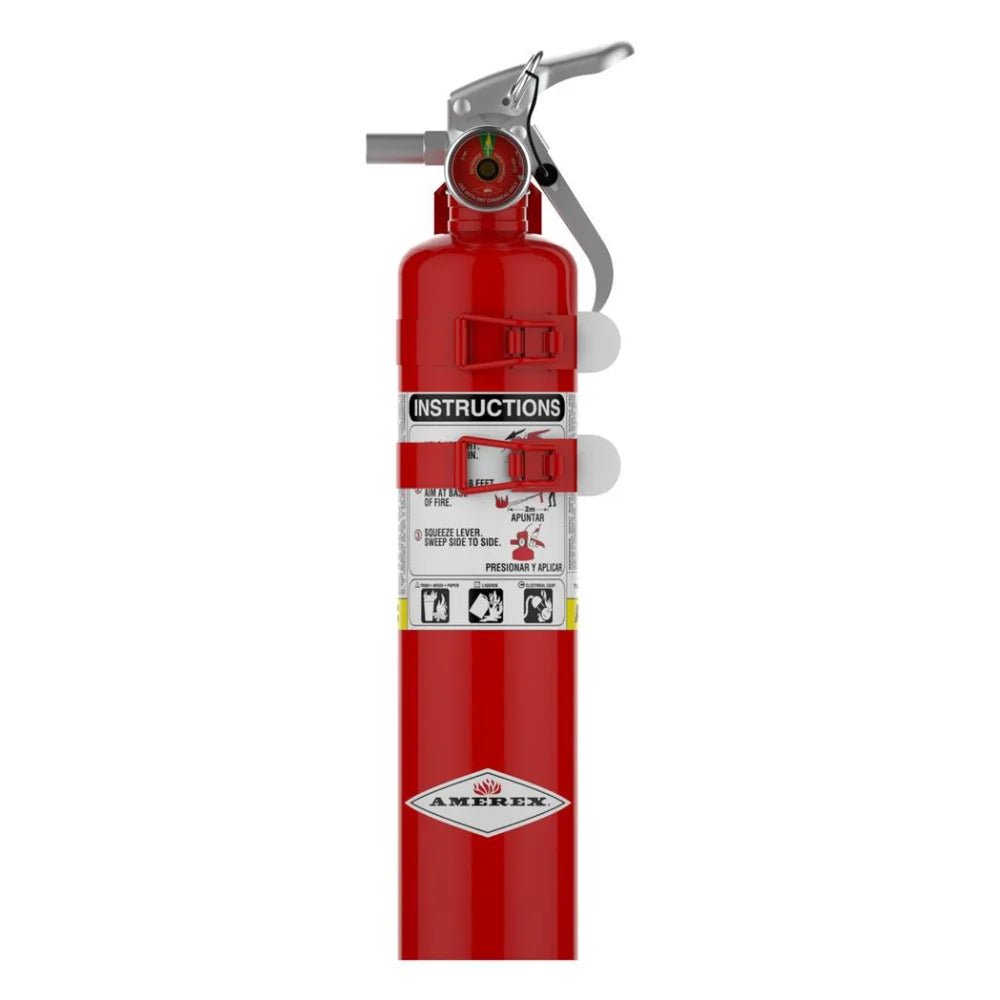

Amerex B417TS — 2.5 lb ABC dry chemical fire extinguisher, UL/ULC rated 1A:10B:C, Amerex part 15949.
The 2.5 lb ABC is the size reached for where a 5 or 10 lb unit will not fit or cannot be secured: service vehicles, equipment cabinets, small mechanical spaces. Its drawn steel cylinder and stored pressure design mean it is serviced and recharged, not discarded. The mono ammonium phosphate agent coats Class A fuels, smothers Class B liquids, and will not conduct back to the operator on Class C.
- UL and ULC rating 1A:10B:C; 2.5 lb ABC dry chemical
- Net weight 5.5 lb; B417 series cylinder 15.5" H × 5.75" W × 3" D
- Discharge time 10 seconds; range 9–15 ft
- Operating temperature range -65°F to 120°F
- Aluminum valve with nozzle, no hose; 6 year warranty
- Made to ANSI/UL 299 and CAN/ULC-S504
Ordering caution: Amerex catalogs 15949 as B417TS plain, while the two-strap bracket build of the same model carries a separate part number (15230). Confirm the bracket arrangement the job needs before ordering.
