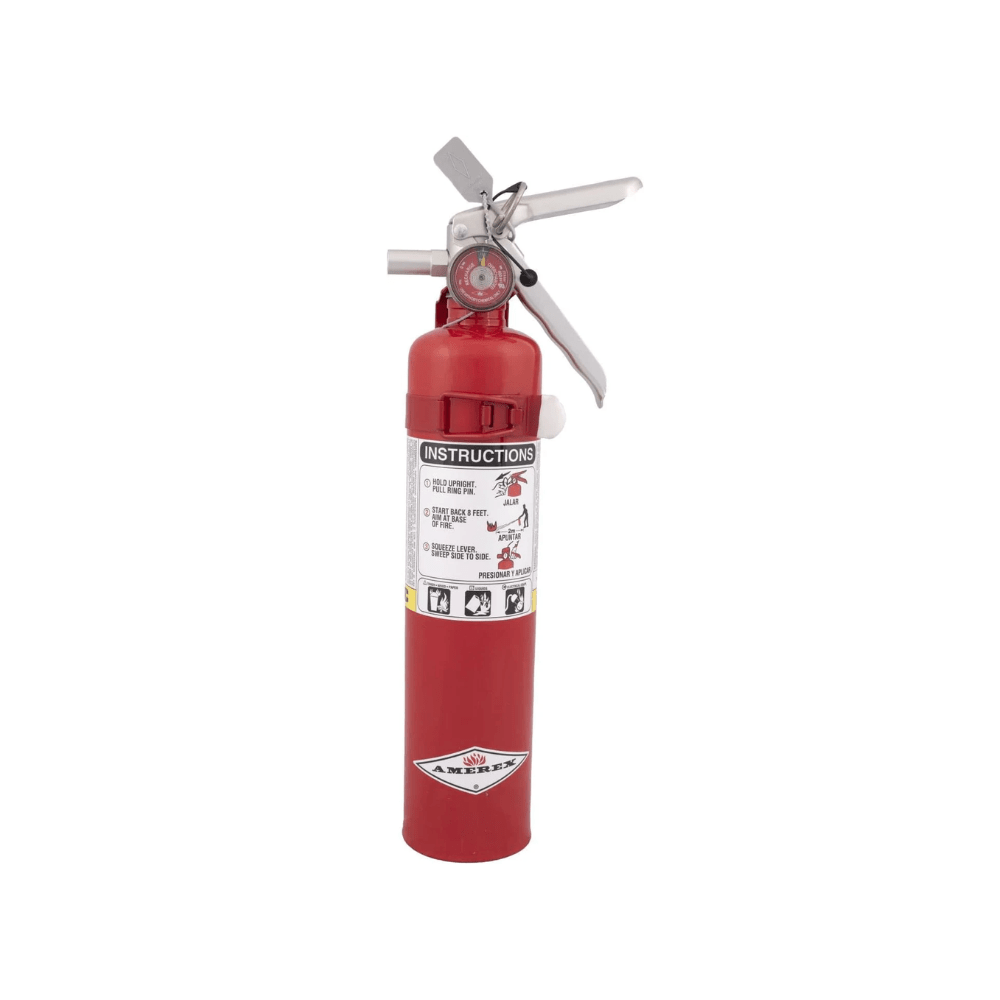

Amerex B417T — 2.5 lb ABC dry chemical hand portable fire extinguisher, Amerex stock number 15217.
Amerex describes its ABC or multi-purpose agent as a specially fluidized and siliconized mono ammonium phosphate dry chemical, which melts and coats Class A fuels and breaks the chain reaction of Class B fires. The B417T is a stored-pressure drawn-steel cylinder with an anodized aluminum valve, handle and lever, and a plain nozzle rather than a hose.
- UL and ULC rating 1A:10B:C; 2.5 lb agent capacity
- Nominal operating pressure 195 PSIG; discharge time 9 seconds
- Initial discharge range 9 to 15 ft
- 15.25 × 5.5 × 3 in.; shipping weight 5.5 lb
- Temperature range -65 °F to 120 °F
- Included bracket is a vehicle bracket, not a wall bracket
Amerex lists 817 as the vehicle and marine bracket for its 2-1/2 lb and 3 lb aluminum-valve models, 817S as the two-strap version and 860 as the rubber strap. Do not confuse it with the 5 lb B402, B402T and B500, or with B424, which uses a chrome-plated brass valve. What the letter T stands for is defined in no Amerex document read.
