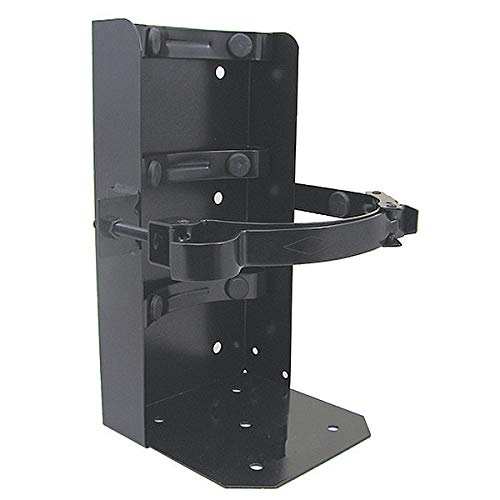

Amerex 810 — heavy-duty box-type vehicle bracket for extinguishers on 7 in. diameter cylinders, ordered under Amerex stock number 12933.
Box-type brackets are a separate Amerex family from the strap brackets grouped as Vehicle/Marine/Aviation: the cylinder sits in a steel box with a base shelf, held by a strap with a pull pin and chain.
- Every extinguisher Amerex lists the 810 against carries a 7 in. cylinder diameter
- Named in both the USCG bracket and optional bracket columns of the Amerex selection chart
- Listed for water 240, wet chemical C260 and C262, water mist C270 and C272, Halon 1211 361, CO2 330 and 331
- Also for ABC A411 and 423, Purple K A413 and 415, Class D C571, and the 13.2 lb. and 20 lb. Z-Series
- Back mounting hole diameter 7/16 in.
- Meets UL salt spray requirements, 240 hours at 20% salt solution per ASTM B117
The 810CG and 810G share the 810 hole pattern but are separate numbers. Either side sit the 809 for 5 in. cylinders, the 812 for 6 in. and the 811 for 8 in. Do not confuse these with the 818 or 821, strap-type brackets in a different Amerex group.
