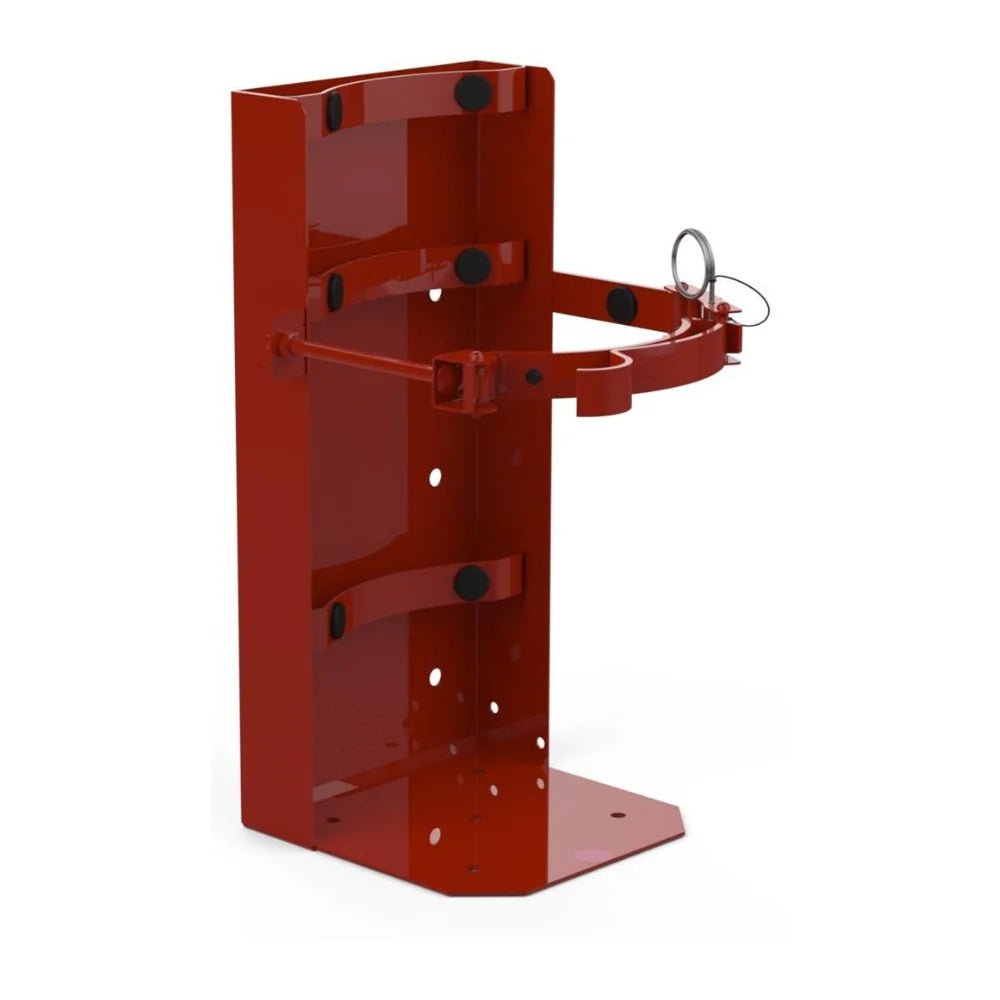

Amerex part 21236 is the Model 809G heavy-duty box-type vehicle bracket. It is the galvanized build of the Model 809, finished in red, for extinguishers on a 5 in. diameter cylinder. The galvanized steel suits salt air, wash-down bays and other conditions that rust a painted-only bracket.
- Fits Amerex hand portable extinguishers with a 5 in. diameter cylinder (the Model 809 size, used on 6 lb and 10 lb dry chemical models, the 5 lb CO2 Model 322 and 10 lb Z-Series units)
- Same mounting hole pattern as the standard Model 809, so it drops into an existing footprint
- Box-type design: the cylinder sits in a steel box and is held by a strap with pull pin and chain
- Replacement pull pin and chain for box-type brackets: Amerex 13888
- Meets the UL salt spray requirement: 240 hours at 20% salt solution per ASTM B117
Check the Amerex bracket chart for your extinguisher model before ordering.
