Amerex 809 Heavy Duty Bracket (12932)

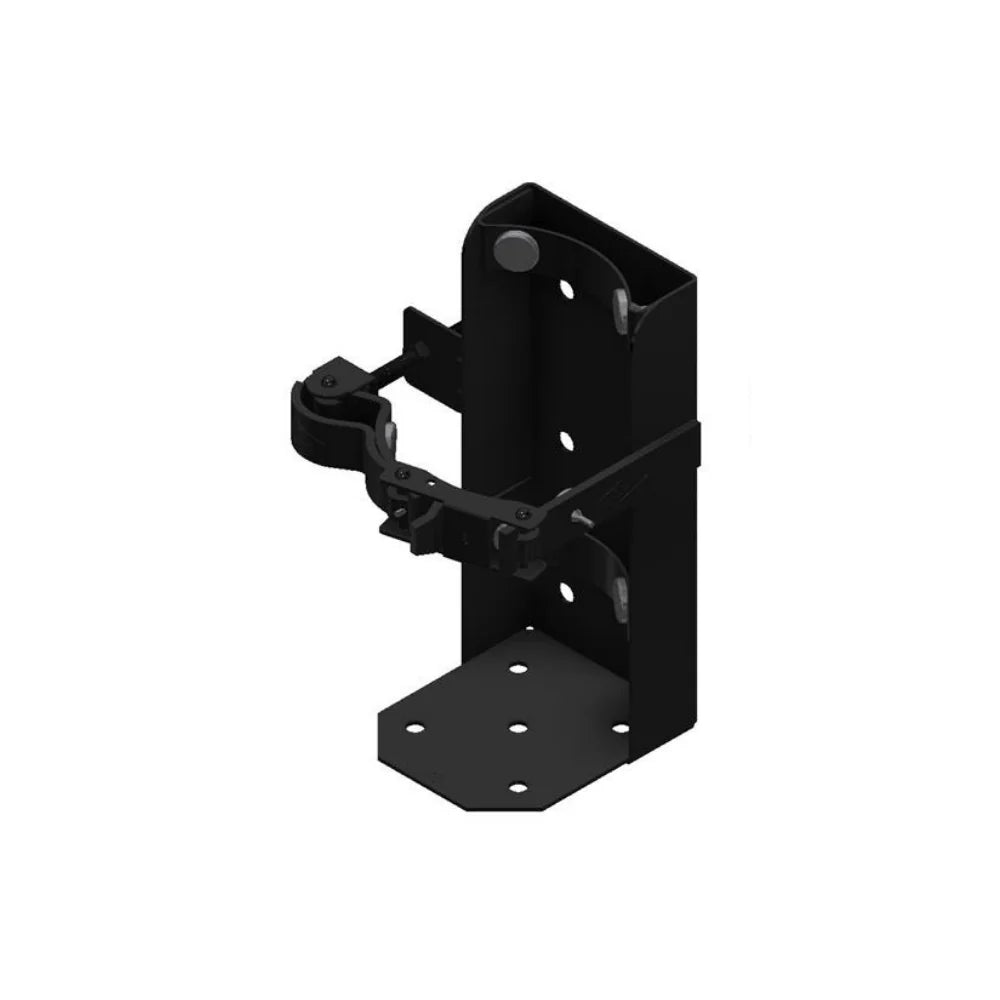

The Amerex 809 is a heavy-duty box-type vehicle bracket for Amerex hand portable extinguishers with a 5 in. diameter cylinder. Amerex lists it as the U.S. Coast Guard bracket option for its 6 lb. and 10 lb. dry chemical models, the 5 lb. CO2 model 322 and the 10 lb. Z-Series models 711 and 712. This part number is the black-finish version.

Key Features

• Heavy-duty box-type vehicle bracket for 5 in. diameter cylinders
• Black finish
• Steel construction with primed and powder-coated paint finish
• Meets UL salt spray requirement (240 hours at 20% salt solution, ASTM B117)
• 1-year manufacturer's warranty on brackets
• Back mounting holes are 7/16 in. diameter
• Replacement rubber bumper grommet: Amerex P/N 01990-P; replacement pull pin and chain: P/N 13888-P

Specifications

Compatible With

• Amerex B443, B461 (6 lb. ABC)
• Amerex B456, B441 (10 lb. ABC)
• Amerex B460 (10 lb. Purple K)
• Amerex 322 (5 lb. CO2)
• Amerex 720, 722 (10 lb. high flow)
• Amerex 711, 712 (10 lb. Z-Series)
• Amerex B369, B371 (Halon 1211)
• Amerex 351, 551 (12.5 lb. Halotron BrX)

Documents & Downloads

• Amerex Bracket Reference (Reference Chart)
• Bracket Hole Patterns - Box Type (Drawing)
• Amerex Fire Extinguishers At-A-Glance (bracket chart) (Reference Chart)
• Amerex Fire Extinguisher Parts Book (Parts List)
