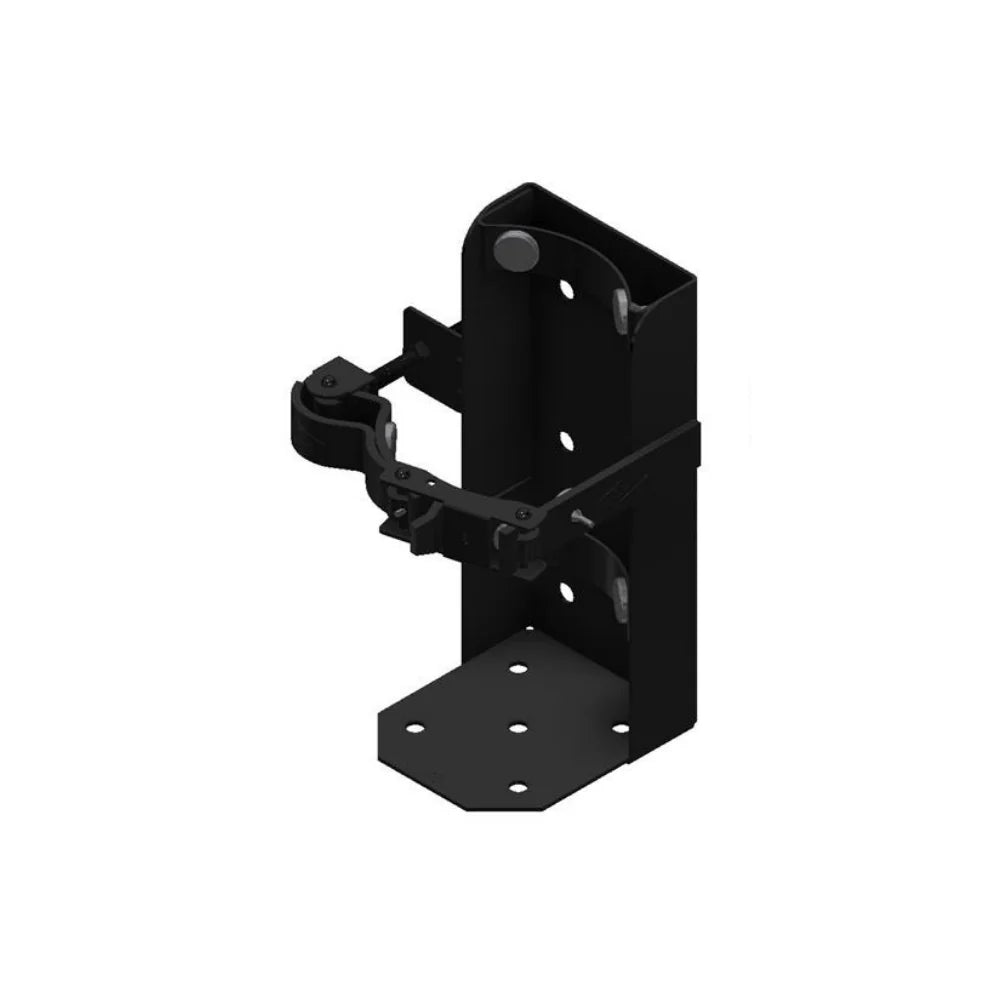

Amerex 807 Heavy Duty Bracket (12312) BKT ASY 807 BK 4.25 HD
The Amerex 807 is a heavy-duty box-type vehicle bracket for Amerex 5 lb. class hand portable extinguishers with a 4.25 in. diameter cylinder. Amerex lists it as an optional bracket for models such as B402, B500, B424, B479, B386T and B394TS. This part number is the black-finish version.
Key Features
- Heavy-duty box-type vehicle bracket for 4.25 in. diameter cylinders
- Black finish
- Steel construction with primed and powder-coated paint finish
- Meets UL salt spray requirement (240 hours at 20% salt solution, ASTM B117)
- 1-year manufacturer's warranty on brackets
- Back mounting holes are 7/16 in. diameter
- Replacement rubber bumper grommet: Amerex P/N 01990-P; replacement pull pin and chain: P/N 13888-P
Specifications
| Bracket model |
807 |
| Fits cylinder diameter |
4.25 in. |
| Finish |
Black |
| Drawing dimension H |
10-3/8 in. |
| Drawing dimension W |
6-3/4 in. |
| Drawing dimension D |
5-1/8 in. |
| Mounting hole diameter |
7/16 in. |
Compatible With
- Amerex B402 / B402T (5 lb. ABC)
- Amerex B500 / B500T (5 lb. ABC)
- Amerex B424 (5 lb. ABC, brass valve)
- Amerex B479 / B479T (5 lb. Purple K)
- Amerex B386T (5 lb. Halotron I)
- Amerex B394TS (5.5 lb. Halotron I)
- Amerex B355T (5 lb. Halon 1211)
