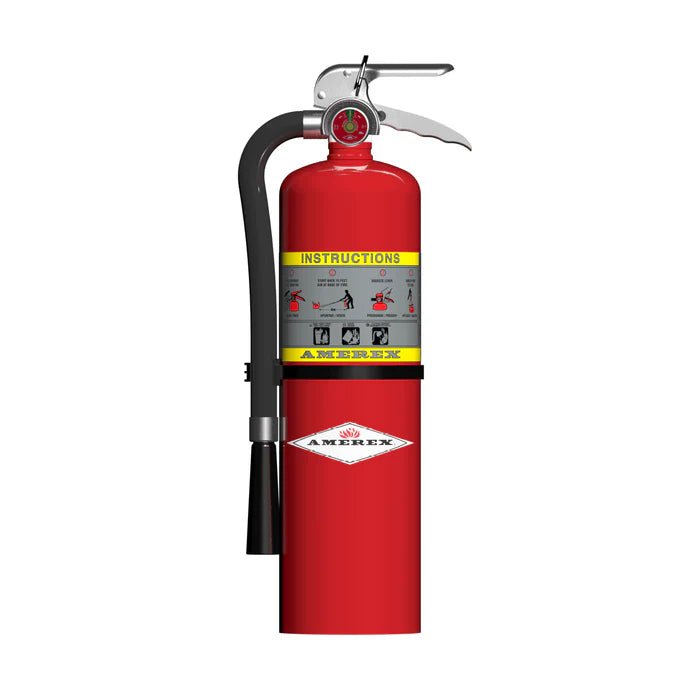

Amerex 711 Z Series High Performance Compliance Flow ABC Fire Extinguisher, 10 Pound, 4A80BC, With Wall Bracket (27940)
The Amerex 711 is the 10 lb. (4.5 kg) ABC dry chemical model in the Z-Series high-performance line, in the Compliance Flow configuration rated 4A:80B:C. Z-Series units are stored-pressure extinguishers intended for high-hazard, frequent-use and corrosive environments, with a chrome-plated brass valve with gauge guard, hose and nozzle. A wall bracket is included.
Key Features
- UL & ULC rating 4A:80B:C
- 10 lb. (4.5 kg) ABC dry chemical, Compliance Flow
- Chrome-plated brass valve with gauge guard; all-metal valve construction
- Hose and nozzle design; wide grip gives clearance for gloved hands
- Z-Series corrosion-resistant zinc-enriched coating
- Protective rubber foot ring
- Operating temperature range -65 F to 120 F
- Wall bracket included; 12-year manufacturer's warranty
Specifications
| UL/ULC rating |
4A:80B:C |
| Capacity |
10 lb. / 4.5 kg |
| Shipping weight |
19.5 lb. |
| Height |
20.5 in. |
| Width |
8.25 in. |
| Depth |
5 in. |
| Cylinder diameter |
5 in. |
| Range (initial) |
15-21 ft. |
| Discharge time |
22 sec. |
| Nominal operating pressure |
195 psig |
| Test standards |
CAN/ULC-S504 - UL 299; CAN/ULC-S508 - UL 711 |
Compatible With
- Amerex 877 wall bracket (included)
- Amerex 809 / 809G vehicle brackets (USCG/optional)
