Amerex 332 20lb CO2 Fire Extinguisher (1708) USA AM

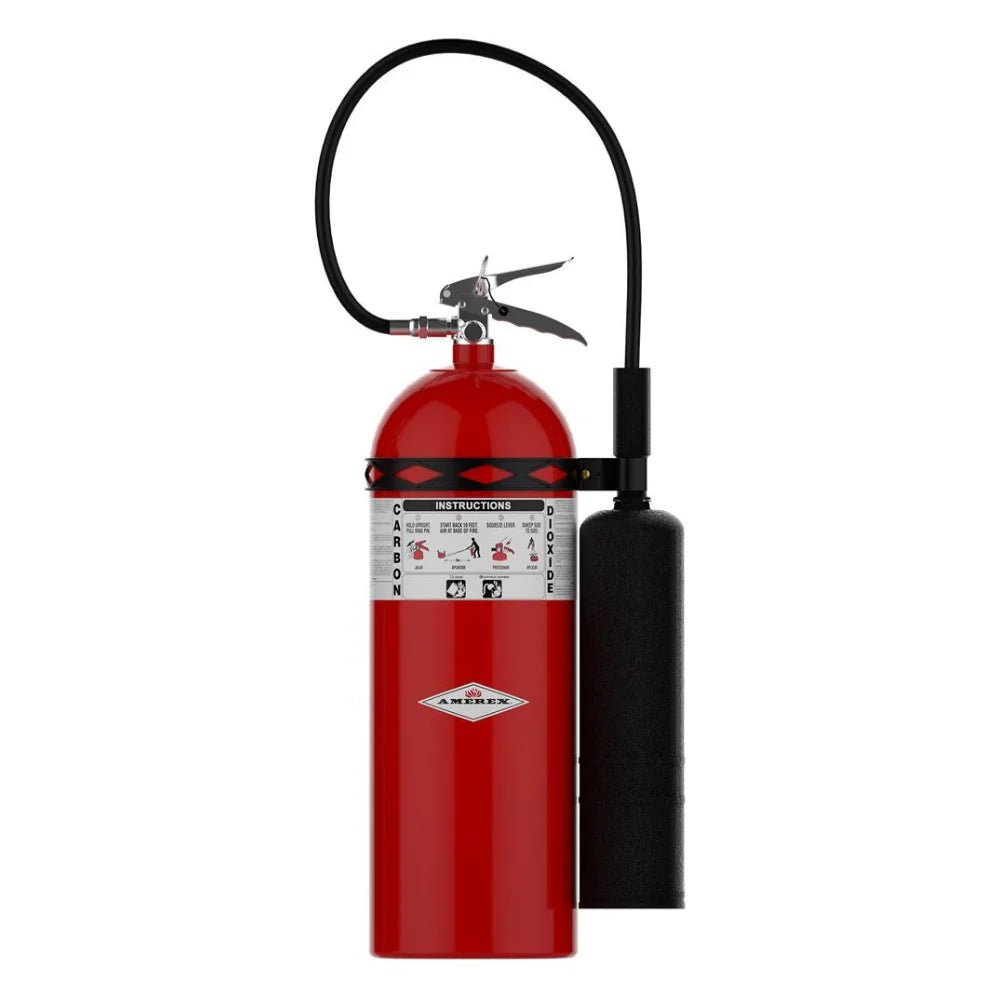

The Amerex 332 is a 20 lb. carbon dioxide hand portable fire extinguisher rated 10B:C (UL and ULC). CO2 discharges as a cloud that smothers the fire by displacing oxygen; it is electrically non-conductive and leaves no residue. The unit has an aluminum cylinder, chrome-plated brass valve, hose and horn, and ships with a wall bracket.
Key Features
- UL & ULC rating 10B:C
- 20 lb. carbon dioxide charge
- Chrome-plated brass valve, all-metal valve construction
- Aluminum cylinder (DOT-approved shell with date stamped on the cylinder shoulder)
- Hose and horn discharge assembly
- Operating temperature range -22 F to 120 F
- Wall bracket included; 5-year manufacturer's warranty
- USCG approved when used with the bracket listed on the UL label (811 bracket)
Specifications
| UL/ULC rating |
10B:C |
| Capacity |
20 lb. CO2 |
| Shipping weight |
50.75 lb. |
| Height |
30 in. |
| Width |
13 in. |
| Depth |
8 in. |
| Cylinder diameter |
8 in. |
| Range (initial) |
3-8 ft. |
| Discharge time |
19.2 sec. |
| Included bracket |
Wall |
| Test standards |
CAN/ULC-S503 - UL 154; CAN/ULC-S508 - UL 711 |
Compatible With
- Amerex 811 vehicle bracket (USCG/optional)
- Amerex 864 rubber-strap bracket
- Amerex 859 dolly cart
