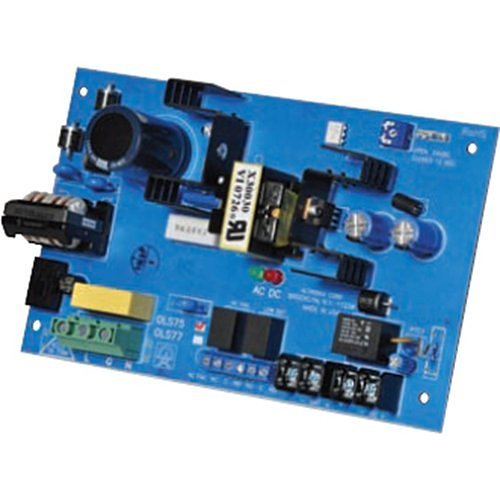

Altronix OLS75 is a single-output power supply/charger board that converts 115 VAC (60 Hz) or 230 VAC (50 Hz) input to a 12 VDC or 24 VDC output at 2.5 A continuous. It is used to power access control and security system accessories that need extra current.
The board monitors the AC input and the standby battery, and it supplies battery leads for the connection.
Features
- Single output, 12 or 24 VDC at 2.5 A
- 115 VAC 60 Hz or 230 VAC 50 Hz input
- Power on/off switch
- Battery leads included
- AC supervision and battery monitoring
- NDAA compliant, RoHS
Specifications
| Type |
Power supply/charger board |
| Output voltage |
12 V DC or 24 V DC |
| Output current |
2.5 A |
| Input |
115 VAC 60 Hz / 230 VAC 50 Hz |
| Outputs |
1 |
| Compliance |
NDAA, RoHS |
