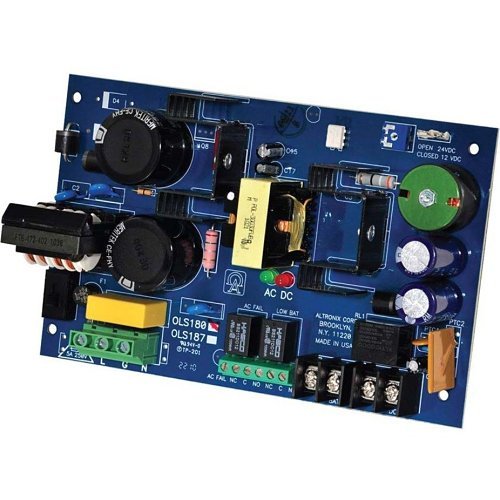

Altronix OLS180220 Power Supply Charger, Single Output, 12/24VDC 6A, 220VAC, Board
The Altronix OLS180220 is an off-line switching power supply/charger board that converts a 220 VAC input (working range 198-256 VAC, 50/60 Hz) into a selectable 12 VDC or 24 VDC output at 6 A continuous. It includes a built-in charger for sealed lead acid or gel batteries with automatic switchover on AC loss, and is used to power access control and security system accessories. It is supplied as a board without enclosure; batteries are sold separately.
Key Features
- 12 VDC or 24 VDC selectable output, 6 A continuous
- 220 VAC input (198-256 VAC working range), 50/60 Hz
- Filtered and electronically regulated output
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel batteries (0.7 A max charge current); battery leads included
- Automatic switchover to stand-by battery when AC fails
- AC fail and low battery supervision (Form C contacts)
- AC input and DC output LED indicators; power ON/OFF switch
- CE compliant; lifetime warranty
Specifications
| Input |
220 VAC (198-256 VAC), 50/60 Hz, 0.8 A |
| Output |
12 VDC or 24 VDC selectable, 6 A continuous |
| Max. charge current |
0.7 A |
| Operating temperature |
0 to 49 C (32 to 120 F) |
| Board dimensions |
7.25 x 4.5 x 1.75 in. (184.1 x 114.3 x 44.5 mm) |
| Weight |
0.9 lb (0.4 kg) |
| Heat output |
12 VDC: 37 BTU/hr; 24 VDC: 74 BTU/hr |
Compatible With
- Access control and security system accessories requiring 12 or 24 VDC
- Sealed lead acid or gel stand-by batteries
