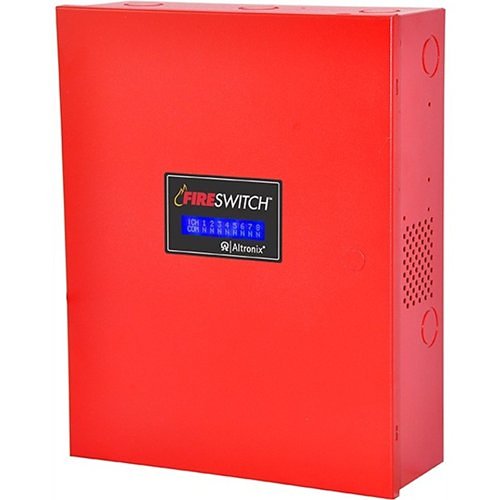

Altronix FIRESWITCH108 — FireSwitch108 managed NAC power extender, 24 VDC at 10 A, in a red enclosure, with an LCD display and an Ethernet port for local and remote programming and monitoring.
The FireSwitch108 is triggered by the signal circuits of a 12 or 24 VDC fire alarm control panel and adds notification appliance circuit capacity. Its eight Class B outputs can be individually programmed as NACs or auxiliary power, or set up as four Class A outputs, and the end-of-line resistor value is programmable per output to simplify retrofits. It generates Temporal Code 3, steady and follower modes, plus CO Temporal Code 4 for Gentex, Potter and System Sensor devices.
Specifications
| Model |
FireSwitch108 |
| Input |
120 VAC, 60 Hz, 4.8 A |
| FACP inputs |
Two Class A or Class B, signal circuit (polarity reversal) or dry contact |
| Outputs |
Eight Class B or four Class A NACs, or any combination with aux power |
| Output voltage |
24 VDC regulated, power-limited |
| Alarm current |
10 A maximum total |
| Standby current |
7 A without battery backup; 1 A with battery backup including aux output |
| Auxiliary output |
One, 1 A regulated, battery backed (0.45 A for Canadian applications) |
| Battery charging |
Two 12 VDC 12 Ah sealed lead acid or gel batteries (sold separately) |
| Supervision |
Form C contacts for AC fail, battery fail and battery presence |
| Enclosure |
15.5 x 12 x 4.5 in. (H x W x D) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Certifications |
UL 864, CAN/ULC-S527-99, FM approved, CSFM approved |
Features
- LCD display shows trouble conditions and which output has faulted
- Ethernet port and LINQ dashboard for remote programming and monitoring
- Synchronizes up to twelve FireSwitch108 units
- Thermal and short circuit protection with auto reset; signal circuit trouble memory
- Low DC power shutdown prevents deep battery discharge
- NFPA 72 and NFPA 720 compliant
Documents
FAQ
Which panels can trigger the FireSwitch108?
It interfaces with 12 or 24 VDC fire alarm control panels through two inputs triggered by Class A or Class B signal circuits (polarity reversal) or dry contacts.
Can it drive CO alarm notification?
Yes. It generates CO Temporal Code 4 per NFPA 720 for Gentex, Potter and System Sensor devices, as well as Temporal Code 3.
Are batteries included?
No. Batteries are sold separately. The enclosure holds two 12 VDC 12 Ah sealed lead acid or gel batteries.
How much current is available?
10 A maximum total alarm current at 24 VDC, with 7 A standby without battery backup.
