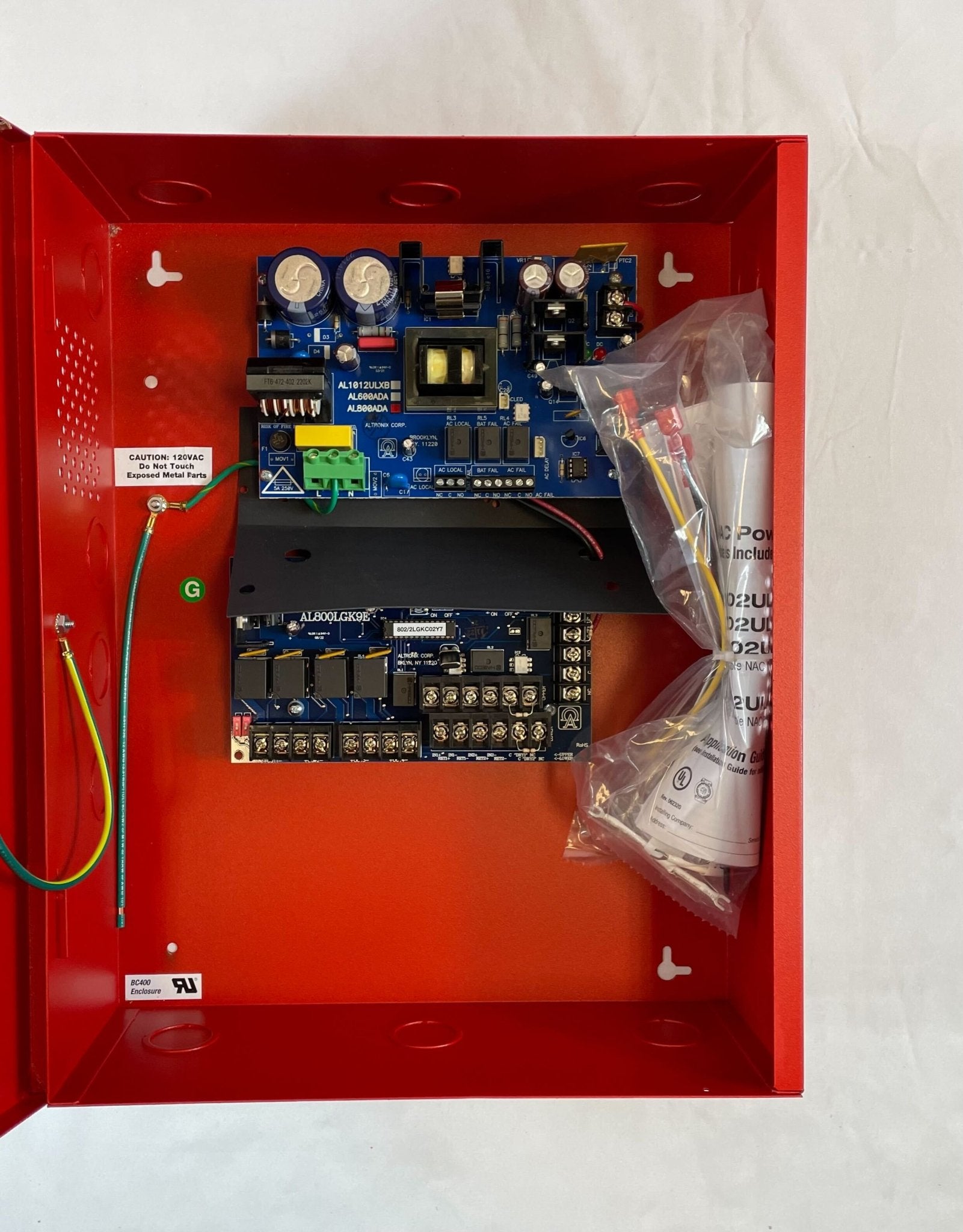

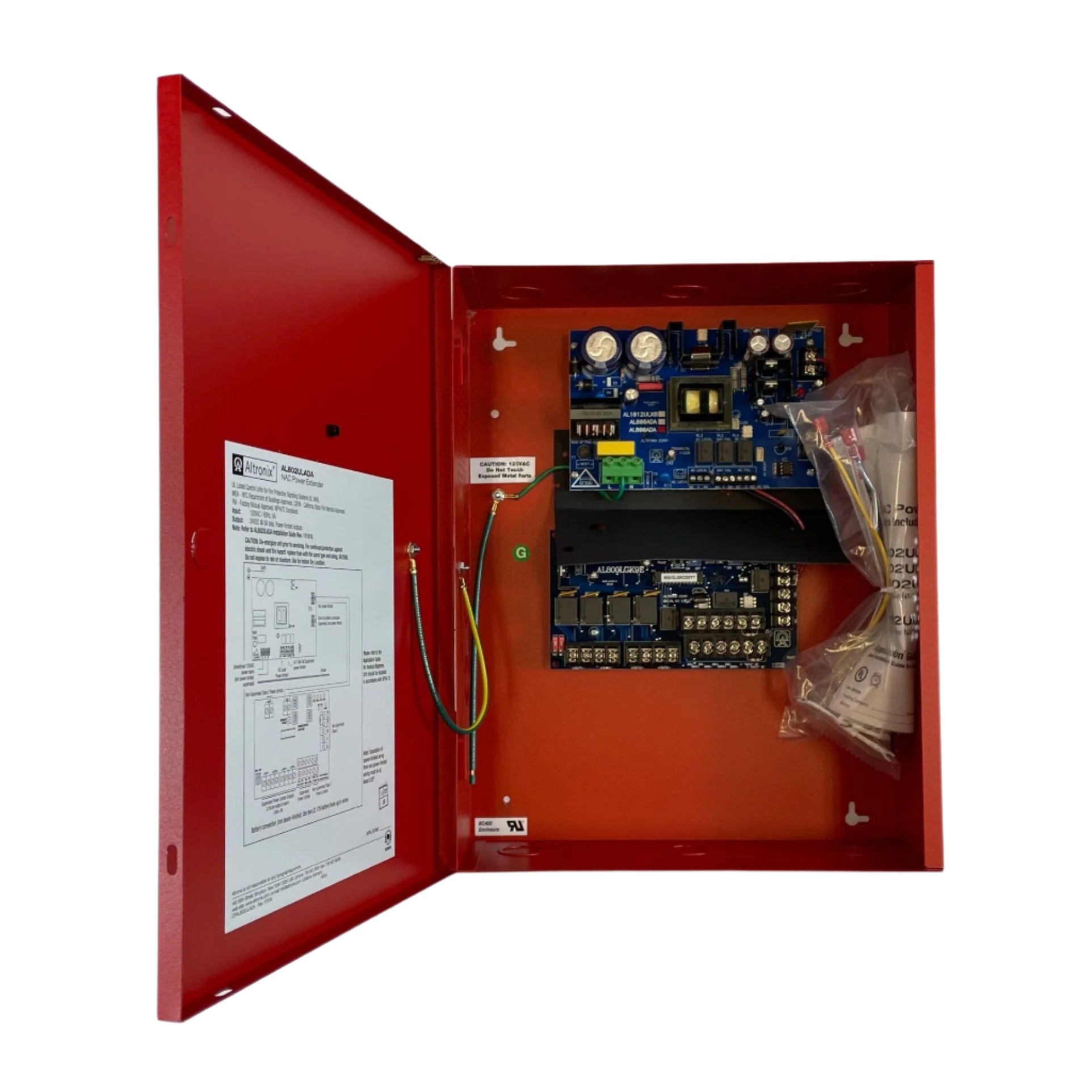

Altronix AL802ULADA is an 8 A notification appliance circuit (NAC) power extender and battery charger for 12 or 24 V fire alarm systems. It follows a signal from the control panel and re-powers notification appliances from its own supply.
It follows a signal from the control panel and re-powers notification appliances from its own supply, so a panel out of NAC current or voltage-drop margin need not be replaced. Each output is set independently for steady, Temporal Code 3, strobe sync or follower operation.
- 120 VAC 60 Hz input; regulated, power-limited 24 VDC outputs
- 8 A total alarm current, 2.5 A per output, 1 A auxiliary
- Four Class B, or two Class A, or one Class A plus two Class B supervised circuits
- Sync protocols for Potter/Amseco, Gentex, System Sensor and Cooper Wheelock

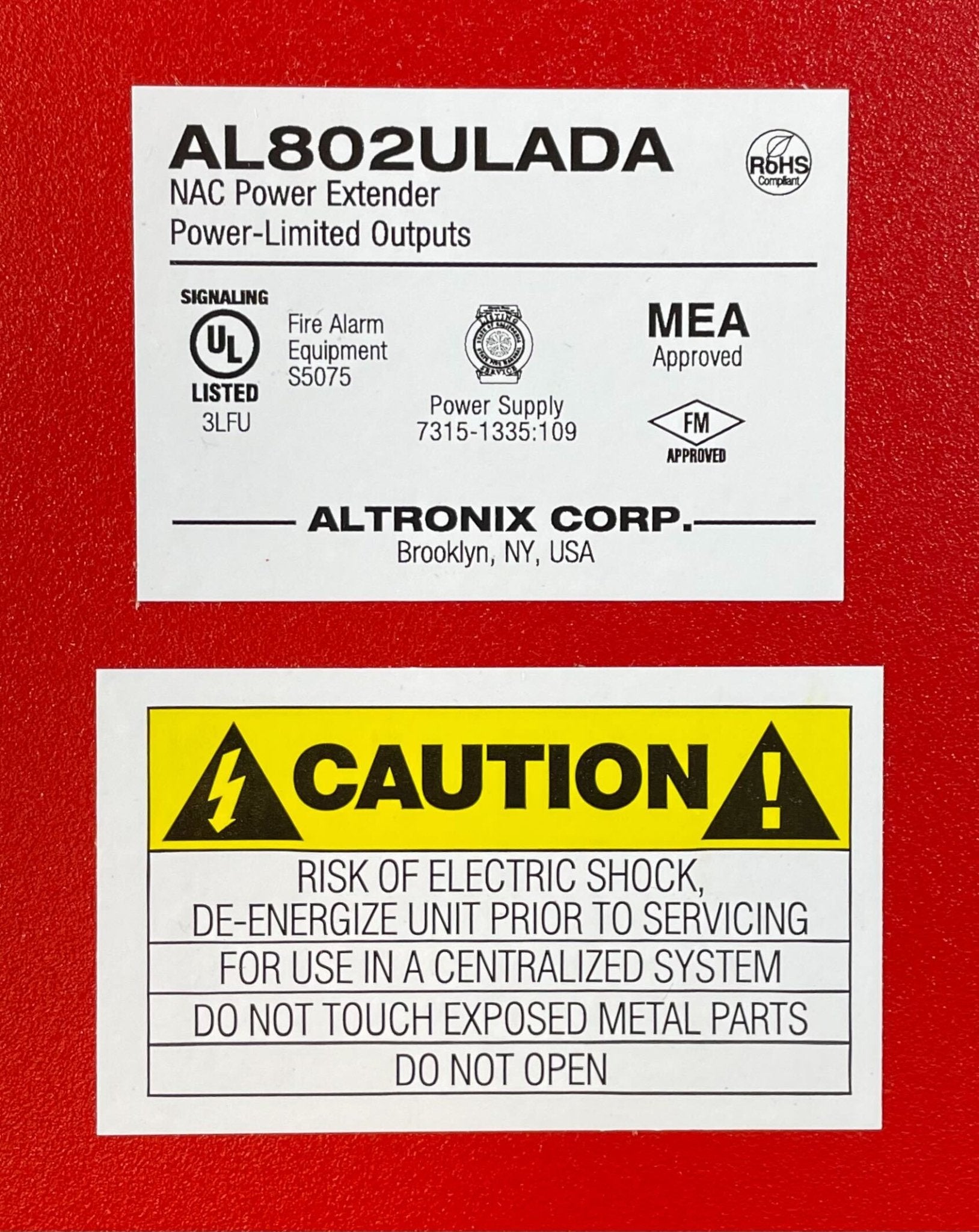

- UL 864 listed accessory for fire systems; FM, CSFM and MEA

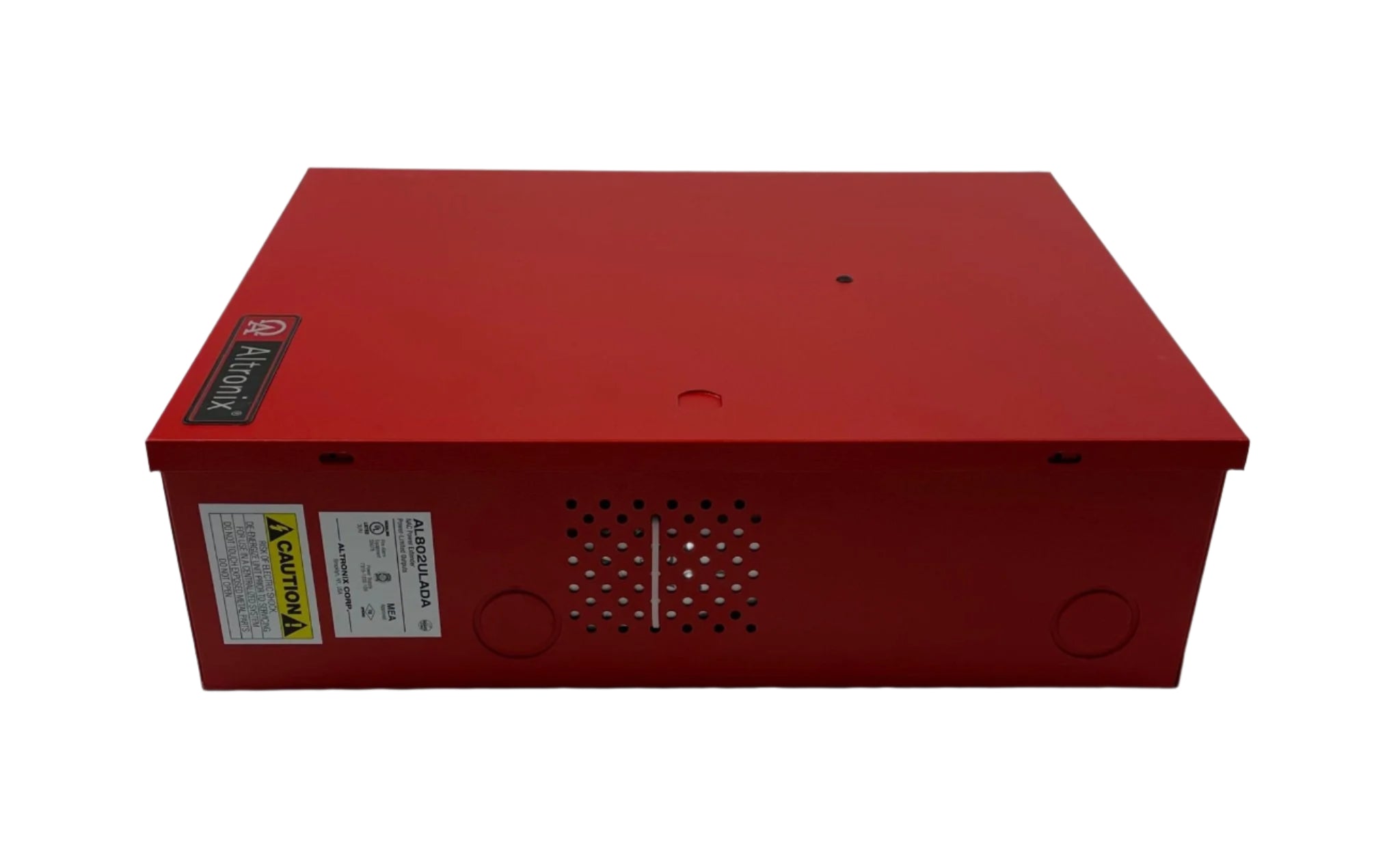

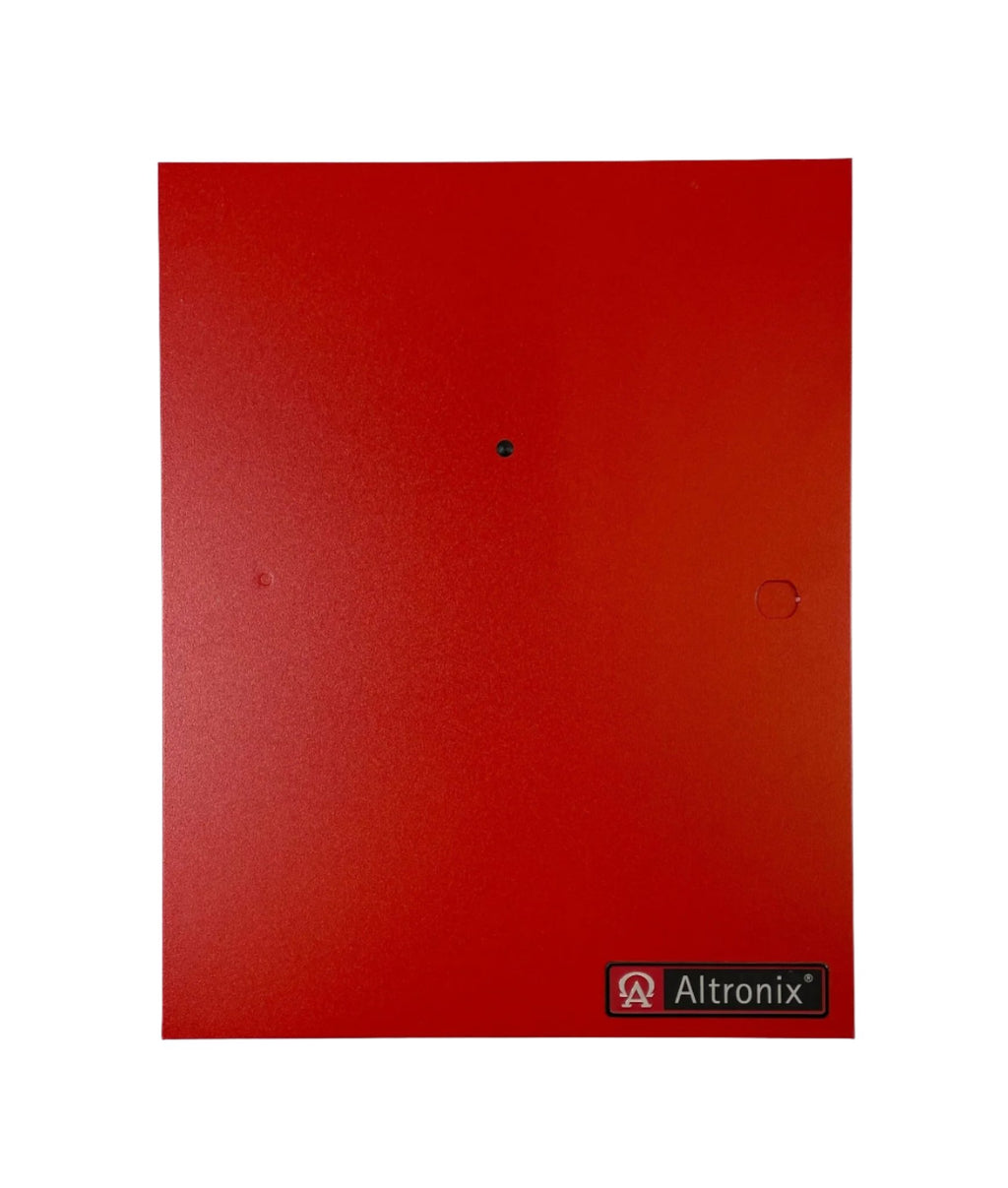

- Enclosure 15.5 × 12.23 × 4.5 in.; two 12 VDC 12 AH batteries, charger to 36 AH
- Form C AC fail and battery fail contacts; ground fault detection
The ADA in the number is Altronix making the claim itself: its installation guide describes the unit as NAC expansion to meet ADA requirements. It synchronises only appliances with sync capability of their own.
Compatibility
Use it when a panel is out of NAC current or voltage-drop margin.
- Sync protocols: Potter/Amseco, Gentex, System Sensor and Cooper Wheelock. It synchronizes only appliances with sync capability of their own.
- It may be connected to any 24-volt fire alarm control panel.
- Pairs with notification appliances such as the System Sensor P2RLED and the Eaton Wheelock ELHSR.
FAQ
What outputs does the AL802ULADA provide?
Four Class B, or two Class A, or one Class A plus two Class B supervised circuits, with 8 A total alarm current and 2.5 A per output.
What operating modes can each output use?
Each output is set independently for steady, Temporal Code 3, strobe sync or follower operation.
