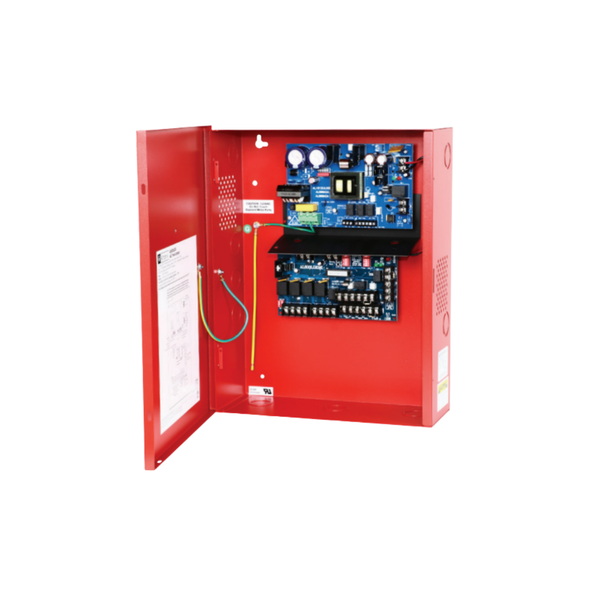

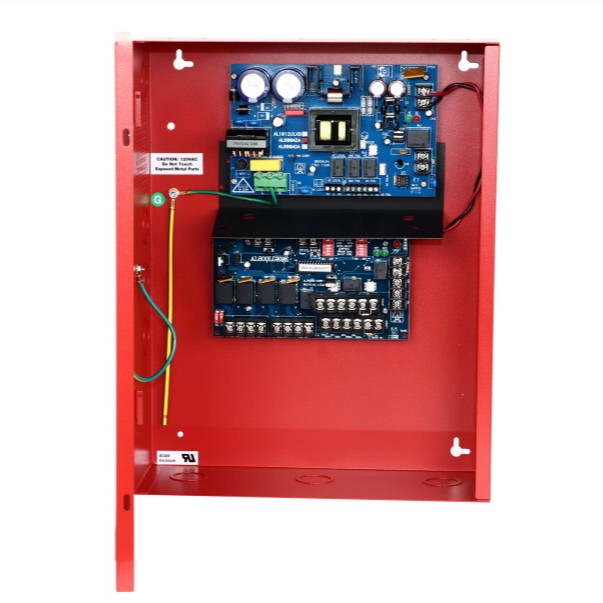

Altronix AL602ULADA — voltage regulated notification appliance circuit power extender, 24 VDC at 6.5 A, in a red BC400 wall mount enclosure.
It connects to any 24 volt fire alarm control panel to expand notification appliance circuit capacity and to supply auxiliary power. A 2-wire sync mode silences horns and strobes together, and loop supervision steers to either input with trouble memory for intermittent faults.
- Input 120 VAC, 60 Hz, 4 A; two Class A or Class B inputs plus two dry contact triggers
- Trigger rating 8 to 30 VDC at 6.5 mA; works with 12 VDC or 24 VDC panels
- 24 VDC power-limited output: 6.5 A maximum total alarm, 2.5 A per output, 1 A auxiliary
- Four Class B, two Class A, or one Class A and two Class B indicating circuits
- Sync protocols Potter/Amseco, Gentex, System Sensor and CooperWheelock
- UL 864 certified, FM Approved, CSFM Approved and NYC Buildings approved
- Enclosure 15.5 × 12.23 × 4.5 in.; ground fault detection
The enclosure holds up to two 12 VDC 12 AH batteries, which Altronix states are sold separately. AL802ULADA and AL1002ULADA are the same box at 8 A and 10 A.
Documents
FAQ
Will it work with my fire alarm panel?
Altronix states it may be connected to any 24 volt fire alarm control panel. Its inputs accept 8 to 30 VDC, so it works with 12 VDC or 24 VDC panels, plus two NC dry contact trigger inputs.
How many notification circuits does it provide?
Four Class B, two Class A, or one Class A and two Class B supervised indicating circuits, each rated 2.5 A, with 6.5 A total alarm current and a 1 A auxiliary output.
Can it synchronize strobes?
Yes. Sync protocols include Potter/Amseco, Gentex, System Sensor and CooperWheelock, and a 2-wire horn/strobe sync mode lets horns be silenced while strobes keep flashing.
Are batteries included?
No. Batteries are sold separately; the enclosure holds up to two 12 VDC, 12 AH batteries.
