Altronix AL400ULX power supply charger: 12 VDC at 4 A or 24 VDC at 3 A, Class 2 output

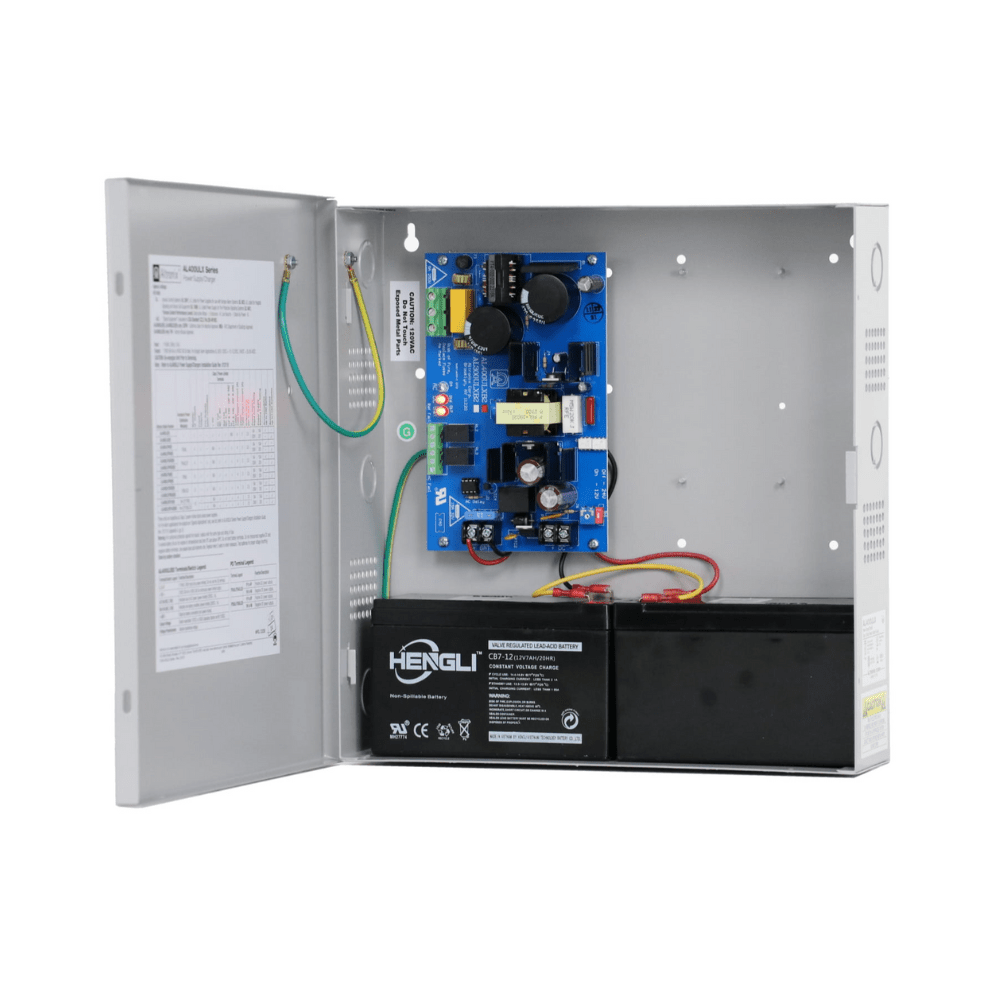

The Altronix AL400ULX is a power supply/charger that converts a 115 VAC, 60 Hz input into a single 12 VDC or 24 VDC Class 2 rated, power-limited output. It ships in a BC300 enclosure; batteries are sold separately.
Input
- 115 VAC, 60 Hz, 3.5 A
- Input fuse rated 3.5 A/250 V
Output
- 12 VDC or 24 VDC selectable output
- 12 VDC at 4 A or 24 VDC at 3 A supply current
- Burglar alarm applications (UL 603): 12 VDC = 11.5 to 13 VDC; 24 VDC = 23 to 26 VDC
- Class 2 rated power-limited output, filtered and electronically regulated
- Short circuit and thermal overload protection
Battery charging and supervision
- Built-in charger for sealed lead acid or gel type batteries, maximum charge current 0.7 A
- Automatic switch over to stand-by battery when AC fails, with zero voltage drop
- AC fail, low battery and battery presence supervision with Form C contacts
- AC fail notification selectable for 30 seconds (factory set) or 6 hours
- AC input, DC output and battery LED indicators
Specifications
| Model |
AL400ULX |
| Enclosure |
BC300 wall-mount, indoor use; 12.5 in. W x 13 in. H x 3.25 in. D |
| Operating temperature |
0°C to 49°C (32°F to 120°F) |
| Storage temperature |
-20°C to 70°C (-4°F to 158°F) |
| Heat output |
25 BTU/hr at 12 VDC; 37 BTU/hr at 24 VDC |
| System AC input |
402.5 VA |
| Product weight |
6.95 lbs. |
Listings
UL 294 (access control), UL 603 (burglar alarm), UL 1481 (fire protective signaling power supplies) and UL 1069 (hospital signaling and nurse call); CSFM and MEA approved, NFPA 72 compliant, FM Approved.
Specifications taken from the Altronix AL400ULX product page and data sheet. Manufacturer specifications are subject to change without notice.
