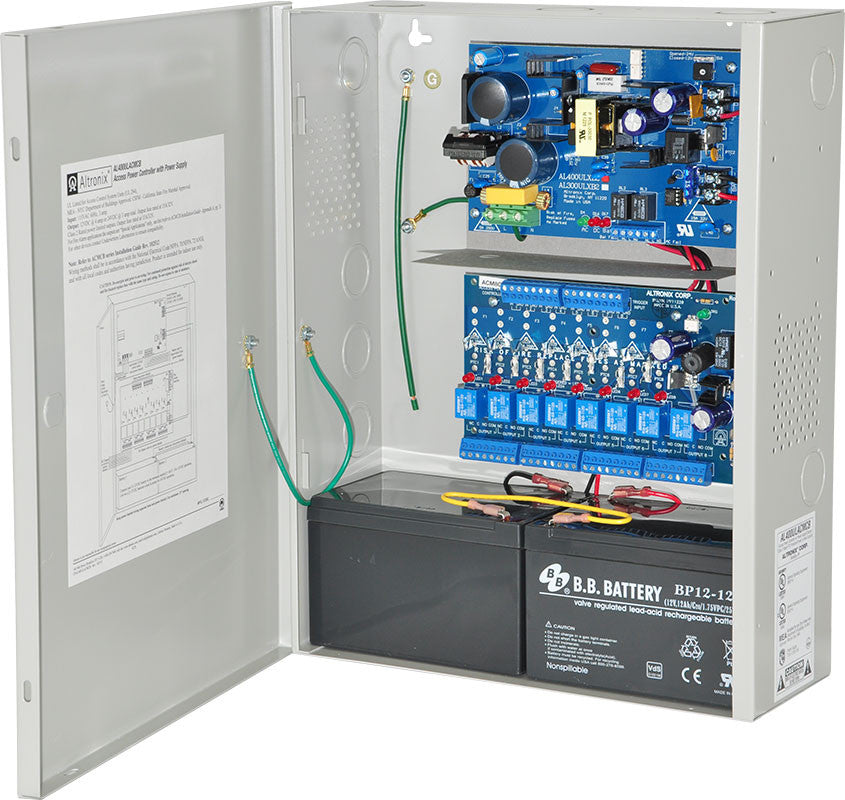

Altronix AL400ULACMCB is an access power controller with a built-in power supply. It turns a 115 VAC input into eight individually controlled, PTC-protected outputs at 12 VDC or 24 VDC.
The outputs drive access control devices such as mag locks, electric strikes and magnetic door holders. Each output can be set for fail-safe or fail-secure operation, and the fire alarm interface lets an output drop out on alarm.
Features
- Eight PTC Class 2 power-limited outputs: 12 VDC at 4 A or 24 VDC at 3 A
- Fail-safe or fail-secure selectable per output
- Fire alarm disconnect selectable per output
- FACP interface supports emergency egress and alarm monitoring
- UL 294 and cUL certified
Specifications
| Outputs |
8, individually controlled |
| Output rating |
12 VDC at 4 A or 24 VDC at 3 A |
| Input |
115 VAC |
| Mounting |
Wall mount enclosure |
| Height |
15.5" |
| Width |
12.2" |
| Depth |
4.5" |
| Compatibility |
Mag locks, electric strikes, magnetic door holders |
Documents
FAQ
What triggers the outputs?
An open collector sink or normally open dry trigger input from an access control system, card reader, keypad, push button or PIR.
How does the fire alarm disconnect work?
A normally open or normally closed dry contact, or a polarity reversal input from the FACP, drops the selected outputs. Disconnect is latching or non-latching and selectable per output.
What batteries does it take?
Sealed lead acid or gel batteries, up to two 12 AH, 12 VDC in the enclosure. Batteries are sold separately.
Are there unswitched outputs?
Yes. Besides the eight switched outputs there are eight unswitched auxiliary power outputs.
