Air Products and Controls STN-10.0 10′ Sampling Tube for Ducts 5′-10′ Wide

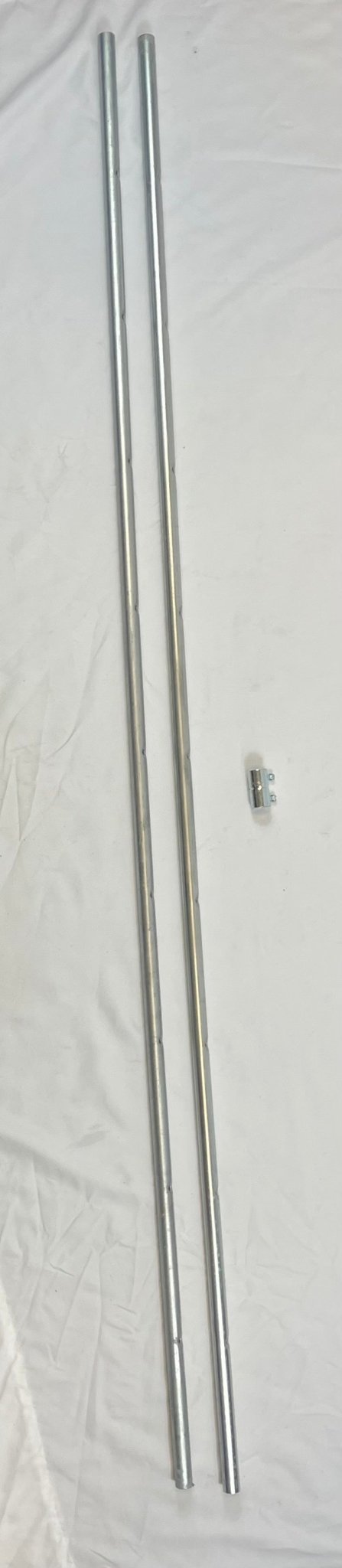

10 ft notched metal sampling tube for Air Products and Controls SL and RT Series duct smoke detectors, for ducts 5 ft to 10 ft wide. The tube is inserted across the duct and its holes sample the airstream for the detector.
Key Features
- Metal tube with notch for SL and RT Series detectors
- For duct widths of 5 ft to 10 ft
Specifications
| Length |
10 ft (3048 mm) |
| Duct width |
5 ft to 10 ft |
| Material / color |
Metal, silver |
| Tube outer / inner diameter |
18 mm / 15 mm |
| Weight |
4 lb |
Compatible With
- APC SL Series (SL-2000) duct smoke detectors
- APC RT Series (RT-3000) duct smoke detectors
- Space Age listing also shows SL-701; not for SM-501 (use STS tubes)
