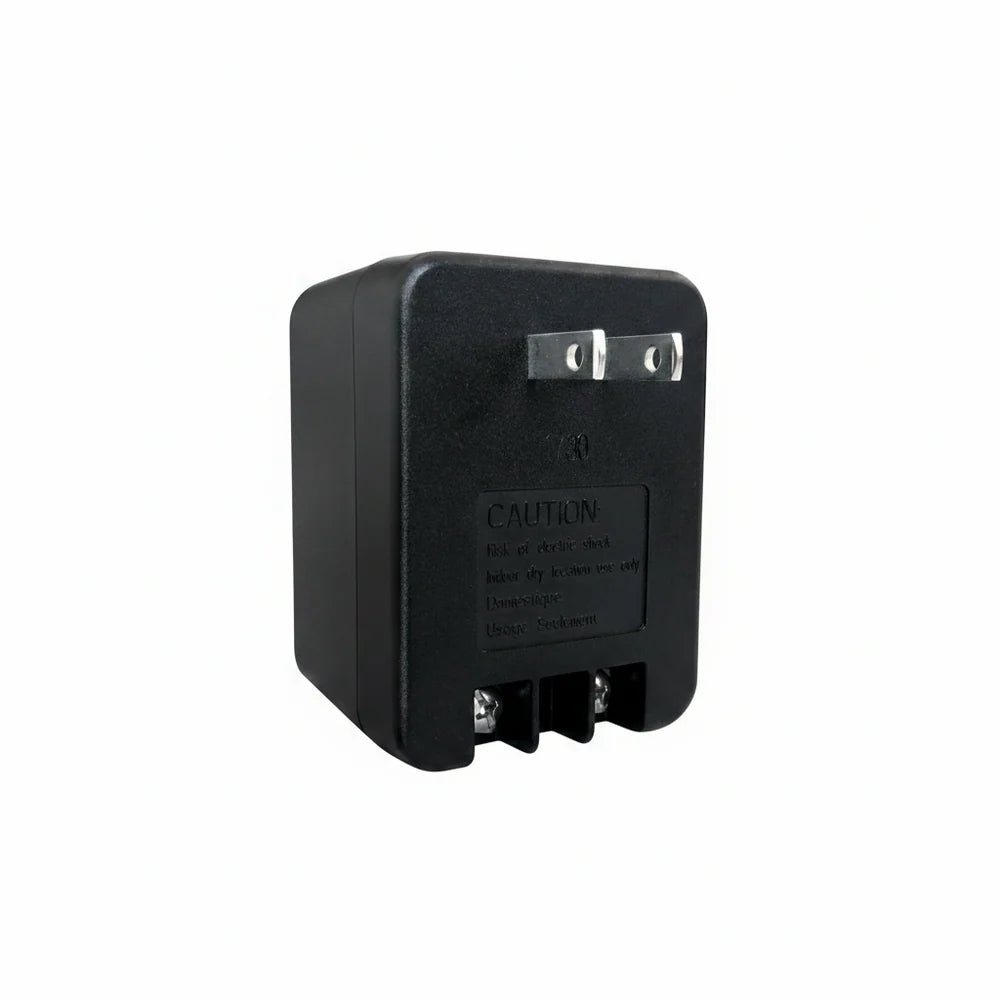

Aiphone PT-1210NA is a plug-in 12V AC transformer for Aiphone intercom and door release applications. It is a compact Class 2 unit rated at 10 VA, and it is certified by UL and CSA.
The transformer plugs into a standard 120V AC outlet and connects to the equipment through screw terminals. It is designed for indoor use only.
Features
- 12V AC output from a 120V AC plug-in transformer
- Class 2, 10 VA power rating
- UL and CSA certified
- Two-prong input, screw terminal output
- For indoor use only
- Named for use with CCS-1A, IE-1AD, IE-1GD, IE-2AD, IE-8MD, LEM-1DL and the EL-12S and EL-9S door strikes
Specifications
| Product Type |
AC transformer |
| Input Voltage |
120V AC |
| Output Voltage |
12V AC |
| Power Rating |
10 VA |
| Input Connection |
2-prong plug-in |
| Output Connection |
Screw terminals |
| Dimensions (W x H x D) |
1.3" x 2.9" x 1.7" |
| Color |
Black |
| Certifications |
UL, CSA |
| TAA Compliant |
No |
| Country of Origin |
China |
