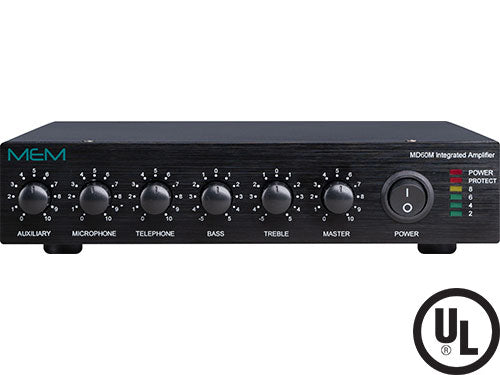

Aiphone MD60M is a 60 watt integrated paging amplifier with three input channels. It combines microphone, telephone and VoIP paging inputs with VOX operation and MOH in one flat-surface unit.
Input controls are independent for each channel, and bass and treble controls shape the output. The balanced microphone input offers phantom power with a selector.
Features
- 3 channel inputs
- Balanced microphone input with phantom power and selector
- Balanced telephone paging input
- VoIP telephone paging input
- Telephone and microphone VOX sensitivity controls
- Independent input controls
- Bass and treble controls
- Wide frequency response and very low distortion
Specifications
| Product type |
Paging amplifier |
| Output power |
60 W |
| Channels |
3 |
| Form |
Flat surface |
| Dimensions (H x W x D) |
1.8" x 12.5" x 8.5" |
| Input voltage |
120V AC |
