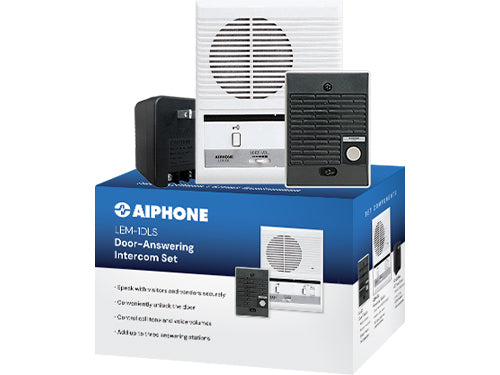

The LEM-1DLS Access Sentry system is an audio door answering and door release system for business use. The set includes a desk or wall mount master station, a surface mount door station, and an AC transformer to power the system. A call from the door station sounds a momentary electronic tone at the master station. To answer, simply press the "talk" button to speak to the person outside the door, and release to listen. The person at the door station speaks hands-free. A door release mechanism can be activated by pressing the door release button (key symbol). The voice volume and the incoming call tone volumes are adjustable at the master station. The door release button is designed to activate an electric strike or can be modified in the field to work with a magnetic lock.
Documents
FAQ
What is in the LEM-1DLS set?
An LEM-1DL 1-call master station with door release button, an LE-D surface mount door station and a PT-1210N AC transformer.
Does the transformer power the door strike?
Yes. The PT-1210N AC transformer supplies power for both communication and the door strike.
Can the master sit on a desk?
Yes. The master is desk-top or wall mountable.
Which door strike can it use?
The manual shows the EL-12S, rated 12 VAC at 125 mA.
