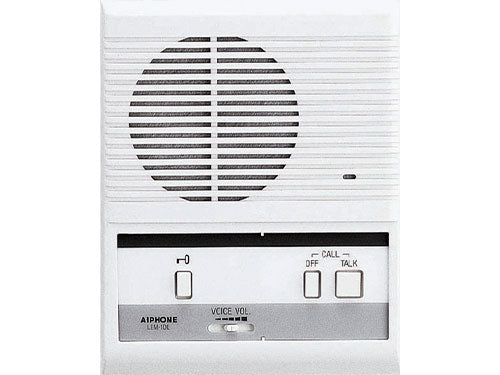

Aiphone LEM-1DL is a 1-call master station with a door release button for the Aiphone LE series. It talks to one LE series door station with push-to-talk, release-to-listen operation and has a separate DOOR RELEASE button. It sits on a desk or mounts on a wall.
Specifications
| Power source |
12 to 16 VAC or 12 to 24 VDC; PT-1210N transformer or PS-1225UL/PS-1225 series supply |
| Consumption |
4 W max. (16 VAC); 200 mA max. (24 VDC) |
| Communication |
Push-to-talk, release-to-listen, with speech volume control |
| Calling |
Electronic continuous tone from door; tone or voice from master |
| Door release contact |
30 VAC 1 A or 30 VDC 1 A max. |
| Wiring distance |
390 ft at 24 AWG; 650 ft at 22 AWG; 980 ft at 20 AWG; 1,570 ft at 18 AWG; 2,360 ft at 16 AWG |
| Dimensions |
7 in. H × 5-1/2 in. W × 2-1/4 in. D |
| Weight |
Approx. 0.75 lb |
Features
- Separate DOOR RELEASE button
- Three-position call tone volume switch under the operation plate
- A PT-1210N transformer can power both the intercom and a door strike
- Package includes the LEM-1DL, screws and the installation and operation manual
Related models
The LEM-1DLS set combines the LEM-1DL with an LE-D door station and a PT-1210N transformer.
Documents
FAQ
What power supply does the LEM-1DL need?
12 to 16 VAC or 12 to 24 VDC. Aiphone specifies the PT-1210N transformer or a PS-1225UL/PS-1225 series supply.
How far can the door station be?
Up to 390 ft with 24 AWG, 980 ft with 20 AWG or 2,360 ft with 16 AWG wire.
What is the door release contact rating?
Up to 30 VAC, 1 A or 30 VDC, 1 A.
Can the call tone volume be adjusted?
Yes, with a three-position switch (low, medium, high) under the operation plate.
