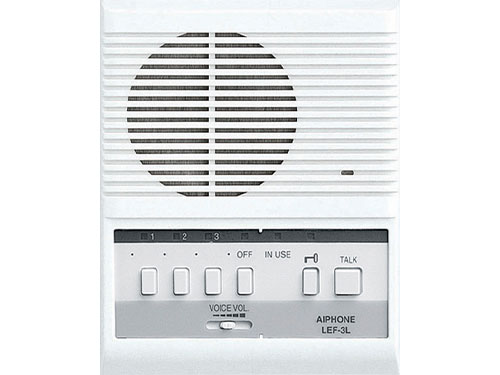

Aiphone LEF-3L is a compact 3-call master station that talks with up to three other stations and can selectively release doors and control external devices. A relay triggered when a channel is selected can switch CCTV cameras, lights or other devices, and a door release button operates electric strikes or magnetic locks.
Masters and remotes can be intermixed up to four stations in total. The calling master uses press-to-talk, and the responding station answers hands-free. Each external device needs an RY-PA relay, set for a momentary closure while the key button is pressed or a maintained closure while the station is selected.
Specifications
| Power |
12 VDC; use PS-1225UL |
| Audio output |
500 mW at 20 ohms transmit; 800 mW receive |
| Calling |
Electronic tone while pressed, plus LED for 20 seconds |
| Wiring |
2 conductors per remote (1 master) or 3 (multi-master); max 12 between masters |
| Distance |
650 ft with 22 AWG; 1,600 ft with 18 AWG |
| Mounting |
Desk or wall (1-gang box) |
| Dimensions |
7-1/16 × 5-5/8 × 2-3/16 in. |
Installation notes
- RY-PA relay required for each external device; normally open output, can be changed to normally closed
- Any LE- series sub station or LEF-compatible unit can be used
- LS-NVP/B is the vandal-proof, weather resistant remote option
Related models
LEF-3C, LEF-5 and LEF-10 are the LEF series masters for more stations.
