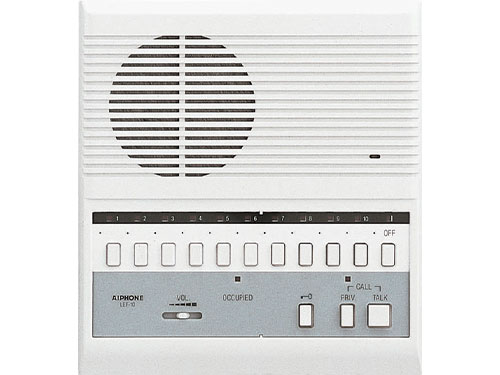

The Aiphone LEF-10 is a selective calling, open voice master station for up to 11 total stations, in any combination of master and sub stations. Calls from a sub or door station are annunciated with a momentary tone and an LED that stays lit for about 20 seconds.
The calling master is press-to-talk, release-to-listen, and the person at the receiving station answers hands-free. A privacy feature on the master and selected subs prevents eavesdropping: a call is received, but the calling master hears the reply only after the privacy button is released. Master stations can be wall or desk mounted.
Specifications
| Power source |
12 V DC, 300 mA per station (PS-1225UL) |
| Output |
800 mW at 20 ohms receiving; 500 mW transmitting |
| Talk channel |
1 talk path, occupied LED |
| Capacity |
Up to 11 stations, intermixable |
| Wiring |
5 common wires plus 1 per station, looped; 1 more common for door release |
| Wiring distance |
650 ft on 22 AWG; 1,600 ft on 18 AWG |
| Door release contact |
30 V DC, 100 mA |
| Frequency response |
770 to 6,800 Hz (-3 dB) |
| Dimensions |
8-1/8 x 7-1/2 x 2-3/16 in. (H x W x D) |
Features
- Selective calling and selective monitoring
- Voice and call tone volume controls
- Selective door release
- Video door entry can be integrated
- Works with LEF or LAF masters, LE, LA or LS series sub and door stations, and the BG-10C chime/music adaptor
Related models
The LEF-10C adds features over the LEF-10; smaller masters include the LEF-5 and LEF-3L.
Documents
FAQ
How many stations can the LEF-10 system have?
Up to 11 stations in total, in any combination of masters and sub stations.
What power supply does it use?
12 V DC at 300 mA per station; Aiphone specifies the PS-1225UL.
How far can stations be wired?
Up to 650 ft with 22 AWG wire or 1,600 ft with 18 AWG wire.
Can it release a door?
Yes. It has selective door release, with a door release button contact rated 30 V DC, 100 mA.
