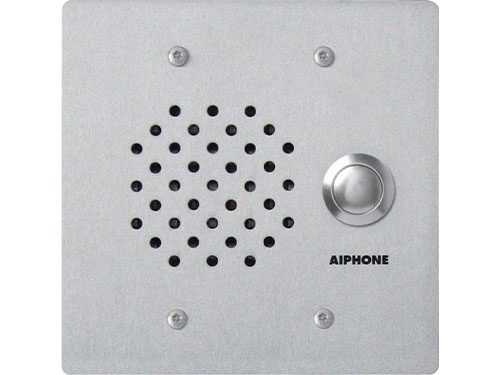

Aiphone LE-SS/A is a 2-gang vandal and weather resistant door station for the LEF and LEM Series, built from 12 gauge stainless steel with a stainless steel mechanical call button. Communication at the door station is hands-free, and power is supplied by the master station.
Specifications
| Construction |
12 gauge stainless steel |
| Call button |
SPST, stainless steel |
| Speaker |
20 Ω, 4 W, 2.5 in. diameter, waterproof and puncture resistant |
| Power |
Supplied by master station |
| Flush mounting |
Standard 2-gang box, minimum 2-1/2 in. deep |
| Surface mounting |
SBX-2G surface mount enclosure |
| Hardware |
Tamper proof screws and installation tool included |
Installation notes
- Do not apply caulking or silicone between the unit and the box, and do not weather-strip the box; the unit is designed to drain and let moisture evaporate.
- If sealing is required, leave the bottom unsealed.
- The call tone rings at the LEM/LEF master as long as the button is held.
Related models
- LE-SSR: same station with a red mushroom call button
- LE-SS-1G: 1-gang door station
Documents
FAQ
Which Aiphone systems does the LE-SS/A work with?
The LEF and LEM Series master stations.
Can it be surface mounted?
Yes, in the SBX-2G surface mount enclosure; for flush mounting use a standard 2-gang box at least 2-1/2 in. deep.
Should I seal it with silicone?
No. Aiphone says not to caulk or seal around the unit; if sealing is required, the bottom must stay unsealed so moisture can escape.
Does it need its own power supply?
No. Power is supplied by the master station.
