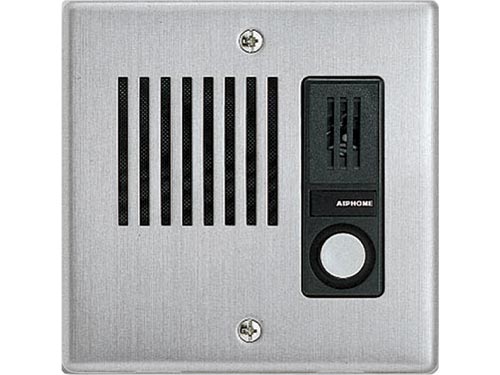

Aiphone LE-DA is a flush mount door station with a stainless steel cover for the LEM/LEF series audio intercom. It provides call-in and hands-free communication once a master station answers, and the cover is weather and vandal resistant. Installers mount it at building entrances and pair it with LEM or LEF master stations, with a door release on the master.
Specifications
| Communication |
Hands-free |
| Mounting |
Flush in a 2-gang back box, or directly on wall with SBX-2G/A |
| Wiring |
3-conductor shielded; 650 ft (22 AWG) or 1,600 ft (18 AWG) to farthest master |
| Protection rating |
IP33 |
| Temperature rating |
14°F to 140°F (-10°C to 60°C) |
| Dimensions |
4-1/2 H x 4-9/16 W x 2 D in |
| Cover |
Stainless steel |
Features
- Call-in and communication from a single station
- Stainless steel cover, weather and vandal resistant
- Hands-free communication when the master answers
- Works with LEF and LEM series master stations
