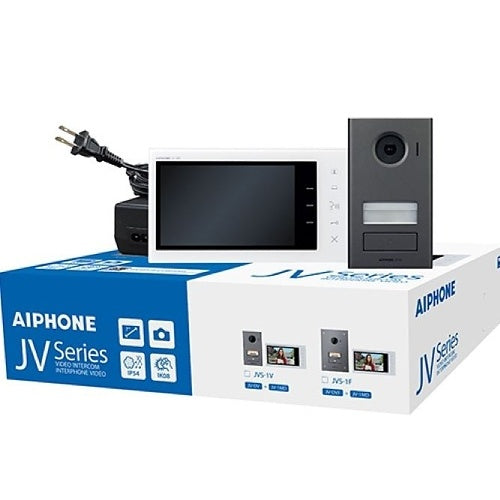

The Aiphone JVS-1V is a JV Series video intercom box set with a JV-1MD video master station, a JV-DV vandal-resistant door station and a PS-2420UL power supply. The JV-1MD is not sold separately. Adding the optional JV-1FD video expansion station creates a 1x2 system.
The JV-DV door station has a fixed camera, LED illumination that turns on automatically in low light, and a backlit call button and nameplate, and is weather and vandal resistant. The JV-1MD provides video identification and monitoring, with hands-free or push-to-talk communication, in a slim design.
Specifications
| Kit contents |
JV-1MD master station, JV-DV door station, PS-2420UL power supply |
| Power source |
24 V DC from the PS-2420UL |
| Communication |
Hands-free (VOX) or push-to-talk |
| Door release |
N/O dry contact, 24 V AC/DC, 1 A |
| Door to master wire |
2-conductor, solid, non-shielded (Aiphone #871802) |
| Door to master distance |
165 ft on 22 AWG; 330 ft on 18 AWG |
| Power supply to master |
16 ft on 22 AWG; 33 ft on 18 AWG |
Installation notes
- Expansion station to master without door release: 4-conductor (#871804) or two runs of #871802
- Expansion station to master with door release: 6-conductor (#871802 + #871804) or three runs of #871802
- Second door station output: N/O wet contact, 500 mA or less, 12 V DC
- Optional JV-1FD expansion station for a 1x2 system
Related models
The JVS-1F box set uses the JV-DVF flush-mount stainless steel door station instead of the JV-DV.
FAQ
What is in the JVS-1V box set?
A JV-1MD video master station, a JV-DV door station and a PS-2420UL power supply. The JV-1MD is not sold on its own.
Can I add a second monitor?
Yes. Adding the optional JV-1FD video expansion station creates a 1x2 system.
How far can the door station be from the master?
Up to 165 ft on 22 AWG or 330 ft on 18 AWG, using 2-conductor solid non-shielded wire such as Aiphone #871802.
Does it have a door release output?
Yes. The master station provides an N/O dry contact rated 24 V AC/DC, 1 A.
