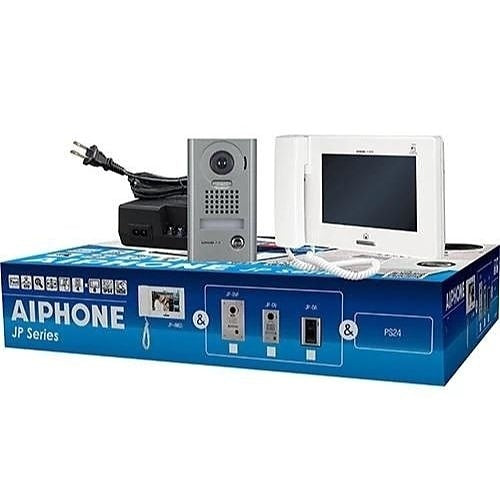

Aiphone JPS-4AEDV is a JP Series 7 in. touchscreen vandal video intercom boxed set. It includes one JP-4MED video intercom answering station, one JP-DV surface mount, vandal resistant video door station, and one PS-2420UL 24 VDC power supply, so a single-door video intercom can be installed from one box. The set is TAA compliant.
The JP-4MED master offers hands-free, voice actuated communication or handset use, and it controls the door station camera with digital pan, tilt and zoom over a wide viewing angle. The door station connects to the master on two-conductor, non-shielded solid wire, and the power supply wires to the master the same way.
Specifications
| Included |
JP-4MED master, JP-DV door station, PS-2420UL power supply |
| Communication |
Hands-free auto-voice actuation or handset |
| Camera |
1/2.9 in. CMOS, approx. 100° x 170° with digital pan, tilt and zoom |
| Wire |
2-conductor, solid, non-shielded (Aiphone 871802) |
| Door station distance |
165 ft (22 AWG) or 330 ft (18 AWG) |
| Power supply distance |
16 ft (22 AWG) or 33 ft (18 AWG) |
| Compliance |
TAA compliant |
Installation notes
- Keep intercom wires more than 12 in. (30 cm) from 100-240 VAC wiring
- Wire with the power supply unplugged
- Add JP-4HD sub stations or a JPW-BA adaptor to expand the system
- The JP-DV mounts on the surface with tamper-resistant screws
Related models
- JPS-4AED: set with the JP-DA door station
- JPS-4AEDF: set with the JP-DVF flush door station
- JP-4HD: 7 in. video sub station
Documents
FAQ
What is included in the JPS-4AEDV?
One JP-4MED answering station, one JP-DV surface mount vandal resistant door station and one PS-2420UL 24 VDC power supply.
How far can the door station be from the master?
Up to 165 ft on 22 AWG or 330 ft on 18 AWG two-conductor, non-shielded solid wire.
How far can the power supply be?
Up to 16 ft on 22 AWG or 33 ft on 18 AWG.
What does the camera show?
A wide view of about 100° x 170° with digital pan, tilt and zoom from the master.
